Color Gray Filter

This processing item converts color image input from a color camera to a monochrome image by passing it through a filter.

The available filters are "Primary color filter (RGB)", "Complementary color filter (CMY)", "Brightness filter", and "HSV method filter."

Note

The processing items after [Color Gray Filter] are the same as when a monochrome camera is connected.

Used for the following case

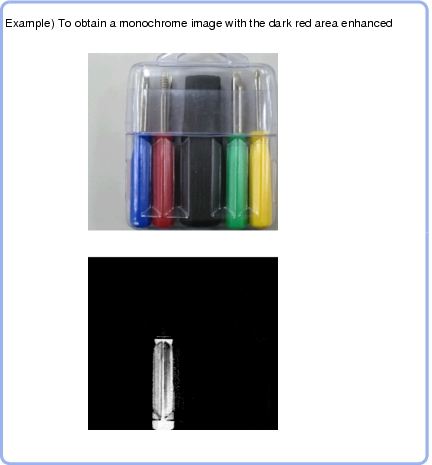

To convert a color image to a monochrome image with a specific color enhanced

Important

The color gray filter cannot be used for 3D measurement.

List of Color Gray Filter Items

Table: List of Color Gray Filter Items
Item Name	Description
Filter setting	This item sets the filter. [Filter Setting (Color Gray Filter)]
