通信仕様を設定する（EtherNet/IP）

Set the communication specifications, such as the output control.

Important

Set the communication module to [EtherNet/IP] before setting the communication specifications. Save the setting to the controller and then restart the system.
Setting the Start-up Status [Startup Setting]
When connecting FZ3 to a CJ series EtherNet/IP Unit, the EDS file in which the FZ3 connection information has been defined needs to be installed on the tool (Network Configurator). Download the EDS file from OMRON's website.
When the 2-line random trigger mode is used with the FZ3-900 series, use the EDS file that corresponds to the line to be used. Specify different addresses for the sending and receiving areas of line 0 and line 1.
After the tag data link is set, the controller automatically restarts to reflect the setting.

On the Main screen, tap [System] menu → [Communication] → [EtherNet/IP].。

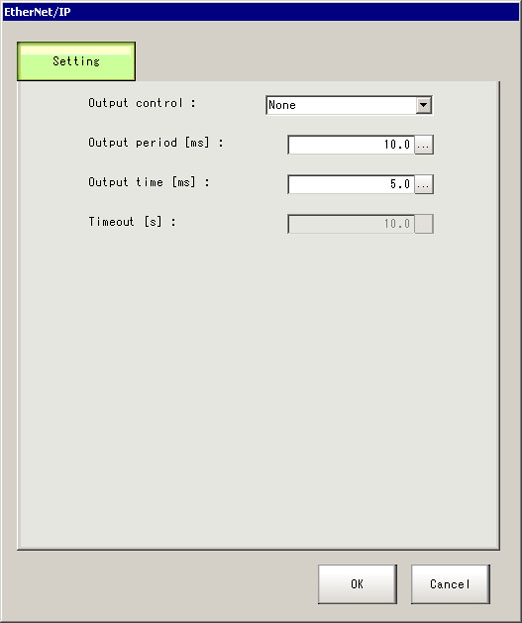

The EtherNet/IP window is displayed.

Set the following items.

Setting item	Setting value [Factory default]	Description
Output control	[None] Handshaking	Set whether or not to synchronize with an external device when outputting data. None: The controller outputs measurement results without synchronizing with external devices. For data output (without handshaking) Handshaking: The controller outputs measurement results while synchronized with external devices. For data output (with handshaking)
Output period	2.0 to 5000.0ms [10.0ms]	Valid only when [Output control] is set to [None]. Set the cycle by which measurement results are output.
Output time	1.0～1000.0ms [5.0ms]	Valid only when [Output control] is set to [None]. Set the GATE signal ON time. Set the time required for external devices to acquire measurement results.
Timeout	0.5～120.0s [10.0s]	Valid only when [Output control] is set to [Handshaking]. A timeout error occurs when no response from external devices is received within the time that has been set. A timeout error occurs if the status of each flag does not change within the specified time in the following situations. 。 The DSA flag turns ON after the measurement is completed. The DSA flag turns OFF after the GATE flag turns ON. The DSA flag turns ON after the GATE flag turns OFF.
