Settings Flow (Character Inspection)

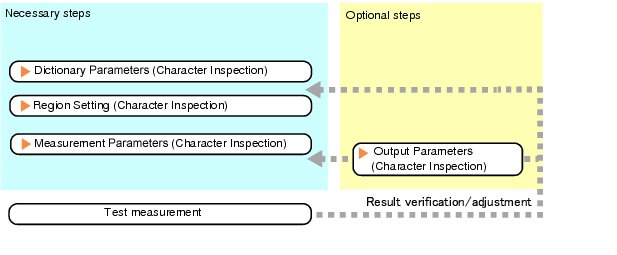

The setting procedure for character inspection is as follows:
Character Inspection - Operation flowOutput ParametersRegion SettingMeasurement ParametersDictionary Parameters

List of Character Inspection Items

Item name
Description
Dictionary
This item specifies the processing unit number for the model dictionary to use for character recognition.
Dictionary Parameters (Character Inspection)
Region setting
This item is used to set up the measurement area.
Instead of measuring the entire input image, narrowing the measurement area shortens the processing time.
Region Setting (Character Inspection)
Measurement
This item specifies the judgement condition for measurement results.Specify the criteria to judge the measurement result if the X and Y coordinates and the correlation with the model are OK.
Measurement Parameters (Character Inspection)
Output parameter
This item can be changed if necessary.Normally, the factory default value will be used.
Use the output parameter to specify how to handle the coordinates.
Output Parameters (Character Inspection)
