Settings Flow (Label Data)

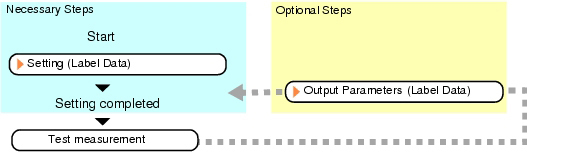

Set up the label data with the following steps.
Label Data - Operation flowOutput ParametersSetting

List of Label Data Items

Item name
Description
Setting
Specify the unit number and label number of the processing unit that is designated as the reference object.
In addition, specify the judgement conditions for measurement results.Specify the upper and lower limit values for the area and the gravity center X/Y.
Output parameter
This item can be changed if necessary.Normally, the factory default value will be used.
Use the output parameter to specify how to handle the coordinates.
Output Parameters (Label Data)
