Filtering Parameters (Filtering)

Treat the images loaded from the camera in order to make them easier to measure.
You can select from 10 filtering methods to match the image state.
  1. In the Item Tab area, tap [Filter parameter].
  2. Set each item while checking the image.

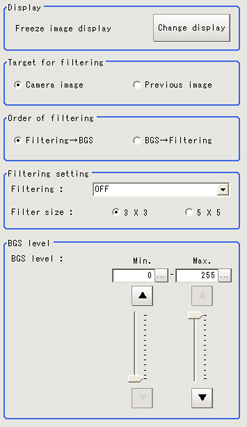

    Filter param - "Detail" area
    Setting item
    Set value
    [Factory default]
    Description
    Display
    Through image display
    The latest image is always input from the camera and displayed.
    [Freeze image display]
    The image that was scanned in the immediately preceding measurement is displayed. Images can be updated at any time during measurement.
    Target for filtering
    [Camera image]
    Filtering is applied to the images input from the camera that is set before this unit ( [Filtering]) in the scene. Filtering is not performed.
    Previous image
    Filtering is applied to the images which have been processed by the [Position Compensation] and [Filtering] units that are set before this unit ( [Filtering]) in the scene.
    Order of filtering
    • [Filtering → BGS ]
    • BGS → Filtering
    Select the sequence of background suppression/filtering.
    Filtering
    • [OFF]
    • Weak smoothing
    • Strong smoothing
    • Dilate
    • Erosion
    • Median
    • Extract edges
    • Extract vertical edges
    • Extract horizontal edges
    • Enhance edges
    Select the type of filtering.
    Filtering options and examples
    Filter size
    • [3×3]
    • 5×5
    Select whether to use information from several surrounding pixels.
    With mask size, the larger the setting value, the more of the surrounding pixel variation that can be assimilated.
    BGS level
    [0] to [255]
    While looking at your image, specify the upper and lower limits for RGB to suppress as the background.
    Background suppression level

Filtering Options and Examples

Treat the images loaded from the camera in order to make them easier to measure.
Types of filtering
The problems to be treated
Filtering description
Example
Weak smoothing
Strong smoothing
Small flecks on the measurement object
Makes flecks less visible.
Makes stable
searching possible and stable area measurement possible.
Dilate
Dark noise exists
This filtering removes dark noise by enlarging brighter areas.
Measurement object
noise removal
Erosion
Brighter noise exists
This filtering removes brighter noise by shrinking brighter areas.
Median
Small flecks on the measurement object
This filtering keep the profile and weaken flecks.
Edge positioning
(Accuracy is not reduced)
Extract edges
Due to a comparatively lower image contrast, defects are difficult to extract
Extracts the boundary lines of the image (light and shade).
Defect inspection
Extract vertical edges
Due to a comparatively lower image contrast, defects are difficult to extract
Extracts the boundary lines vertical to the image (light and shade).
Extract horizontal edges
Due to a comparatively lower image contrast, defects are difficult to extract
Extracts the boundary lines horizontal to the image (light and shade).
Enhance edges
The measurement object is blurry (due to changes such as lighting fluctuation).
Clearly delineates the boundary lines between the light and dark in the image.
Edge positioning

Notes on Filtering Setting

If filtering is applied to the image, the area around the image frame will become unstable. When a [Filtering] processing item has been set in the scene, ensure that measurement ranges, etc. set for other processing items are not included in the area around the image frame.
The width not included in the measurement rage will vary depending on the mask size settings.

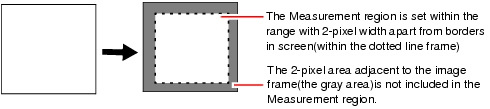

  • Filter size: 5 x 5
    Make settings so that a width around the image frame equal to 2 pixels is not included in the measurement range.
    Illustration of notes about filtering setting

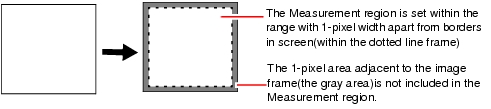

  • Filter size: 3 x 3
    Make settings so that a width around the image frame equal to 1 pixels is not included in the measurement range.
    Illustration of notes about filtering setting
When a partial scan is used to limit the load range
Set so as to not include the image loading range surroundings.
The width that will not be included in the measurement range is the same as the above. (In the following figure, filter size:5 x 5).
Illustration of notes about filtering setting

Background Suppression Level

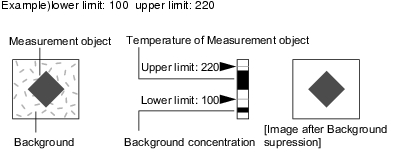

The images below the lower limit and above the upper limit will be set to the lower and upper limits of brightness, respectively.
Illustration of background suppression
Only images with a density of 100 to 220 can be measurement objects.
