Processing Items List Manual
Processing Item List > Input image > Camera Image Input HDR+ > Bright Adjust Setting (Camera Image Input HDR+)Bright Adjust Setting (Camera Image Input HDR+)
This sets how far to track the brightness of the loaded images.
- In the Item Tab area, tap [Brightness adjustment].
- Set each item in the "Bright adjust setting" area.
ItemSet value
[Factory default]DescriptionBrightness adjustment[Unchecked]
CheckedIf a check is placed at "Brightness adjustment", the image is output with its brightness automatically compensated.This makes it possible to obtain images with stable brightness even if the lighting conditions fluctuate, for example due to interfering light.Minimum Adjustment range0.00 to 20.00
[6.00]Specify the follow-up brightness minimum value.Maximum Adjustment range0.00 to 20.00
[16.00]Specify the follow-up brightness maximum value.Adjust bright ave.0.00 to 20.00

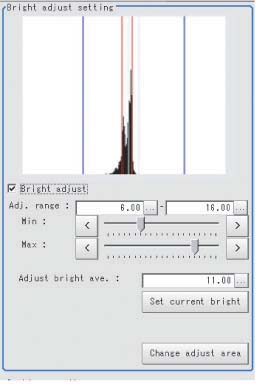

[11.00]Specify the target for brightness follow-up.Tapping the [Set current bright] button updates this value.When a check is placed at "Brightness adjustment", the Brightness Adjustment range is displayed with blue lines in the "Histogram" area.Change the "Adjust bright ave." and brightness adjust area.
