Environment Setting Section > Methods for Connecting and Communicating with External Devices > Controlling/Outputting through Parallel Communication > Checking Communication Status (Parallel Interface)Checking Communication Status (Parallel Interface)
Check the communication status with the external devices that are connected with a parallel interface. You can check whether wiring and communication settings have been performed correctly.
- On the Main screen, tap [System] menu - [Communication] - [Parallel].

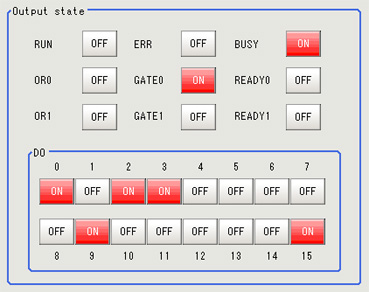

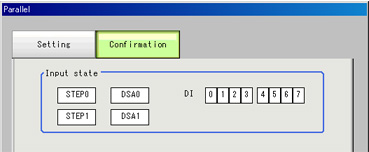

- Tap [Confirmation] to check the I/O status.STEP0,STEP1DSA0,DSA1GATE0,GATE1OR0,OR1READY0,READY1Operation mode = [Multi-line random-trigger mode] (FZ3-9
/H9 series only)I/OMulti-line random trigger modeOther than Multi-line random trigger modeLine 0Line 1STEPSTEP0STEP1STEP0DSADSA0DSA1DSA0DIDI0 to DI7DI0 to DI7DI0 to DI7RUNNo outputRUNGATEGATE0GATE1GATE0BUSYBUSYRUNBUSYOROR0OR1OR0ERRERR (common)ERRREADYREADY0READY1READY0DODO0 to DO7DO8 to DO15DO0 to DO15Important- That status of each of the parallel terminal signals STEP, DSA, GATE, OR, and READY can be checked on the screen with STEP0, DSA0, GATE0, OR0, and READY0.
- If the operation mode (FZ3-9/H9 only) is [Multi-line random-trigger mode], line 0 uses GATE0, OR0, READY0, STEP0 and DSA0, while line 1 uses GATE1, OR1, READY1, STEP1 and DSA1.
- If the operation mode (FZ3-9/H9 only) is [Multi-line random-trigger mode], the RUN signal cannot be checked.
- If the operation mode (FZ3-9/H9 only) is [Multi-line random-trigger mode], the ERR signal is used in common.
- Change the contents to be sent.
- Tap [OK].
