Saving Logging Images to RAMDisk/USB Device

Logged image data in the controller memory is saved to RAMDisk or USB memory.
About Saving Areas
  1. When saving to USB memory, plug a USB memory device into the controller.
  2. On the Main screen, tap [Data] - [Save to file].
    The Save to File window is displayed.
  3. Tap [Logging image] and select the file to save.

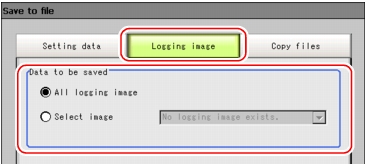

    Save to file - Logging Image window
    Setting item
    Setting value [Factory default]
    Description
    Data to be saved
    [All logging image]
    Saves all the logging images.
    Select image
    Saves the selected logging image.
    Tap [Icon] and select the image to save.

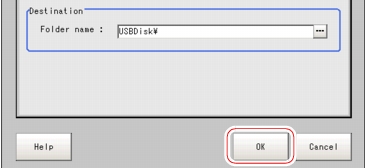

  4. Specify the save destination folder.
    Save to file - Logging Image window
  5. Tap [OK].
    Save to file - Logging Image window
    The window showing transfer status is displayed, and the data is sent to the save destination.
