Processing Items List Manual
Trapezoidal Correction+
This is a processing item for just FZ3-H
series high grade controllers.
series high grade controllers.If measurement is performed with the measurement object tilted or the camera tilted, the input image is converted to orthogonal coordinates.
Used in the Following Case

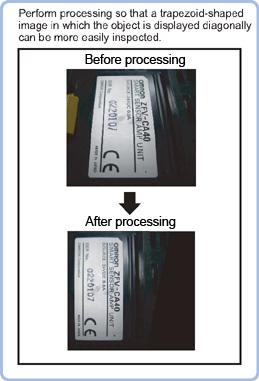

- Processing a trapezoidal image shot tilted to make it easier to inspect
Important
- When FZ3-H
series dedicated processing items are used, processing is carried out that reduces the processing time from the second time on. Therefore, when measuring the same image, the processing for the first time after the controller is started up may be longer than the processing time from the second time on.
