Setting the Start-up Status [Startup Setting]

The status for when power is turned on is set here.
Inspection can be set to start immediately after the power is turned on by setting the scene No. of the scene in which measurement contents are set.
In addition, settings can be done so that the Camera Setting window is not displayed at start-up.

On the Main screen, tap the [System] menu - [Controller] - [Startup setting].

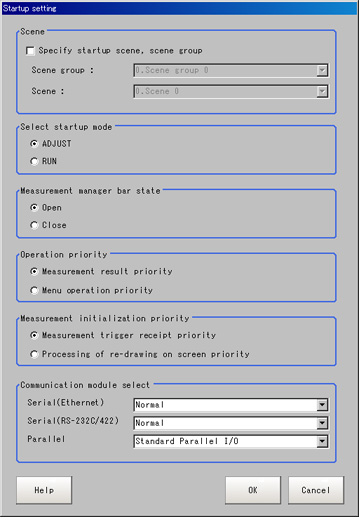

The Startup Setting window is displayed.

Change the settings.

Item		Set value [Factory default]	Description
Scene
	Specify startup scene, scene group	Checked	The selected scene/scene group will be the scene/scene group at start-up.
	Specify startup scene, scene group	[Unchecked]	The scene/scene group set in the controller when "Data save" is executed will be the scene/scene group at start-up.
	Scene Group	Scene groups 0 to 31 [Scene group 0]	Selects the scene group displayed at start-up.
	Scene	Scenes 0 to 31 [Scene 0]	Selects the scene displayed at start-up.
Select startup mode		[ADJUST window] RUN Window	Selects whether the ADJUST window or RUN window is displayed at start-up.
Measurement manager bar state		[Open] Close	Selects whether to display the measurement manager bar at start-up.
Operation priority			Specifies whether measurement results display or menu operation is to have priority.
		[Measurement result priority]	Measurement results display processing will have priority over menu operation.Menu operation will be harder to receive due to its lowered priority status.
		Menu operation priority	Menu operation is prioritized.Measurement results display may be incomplete.
Measurement initialization priority			Measurement initialization is performed immediately after scene switching or flow editing.Specifies whether measurement trigger receipt or screen re-drawing processing has priority during measurement initialization.
		[Measurement trigger receipt priority]	Measurement trigger reception is prioritized even during processing, including measurement processing.Display for screen re-drawing processing may be incomplete due to its lowered priority status.
		Processing of re-drawing on screen priority	Screen re-drawing processing is prioritized.Measurement triggers will not be received until screen re-drawing processing is complete.
Communication module select
	Serial (Ethernet)	[Normal] Normal (Fxxx series method) PLC Link (SYSMAC CS/CJ/CP/One)	Sets the communication module. Serial/Ethernet Normal: Communication is performed with external devices through non-procedure. Normal (Fxxx series method): Communication is performed via a non-procedure method using commands. PLC Link: Communication is performed via a link area with the PLC. Parallel Standard Parallel I/O: Communication is performed via a standard parallel interface.
	Serial (RS-232C/RS-422)	[Normal] Normal (Fxxx series method) PLC Link (SYSMAC CS/CJ/CP/One)
	Parallel	[Standard Parallel I/O]

Tap [OK].
Settings are confirmed and the Startup Setting window closes.
Note
- About "Normal (Fxxx series method)"
  With the "Normal (Fxxx series method)" communication method, the OK response timing in relation to MEASURE commands is different from that of the "Normal" communication method.
  "Normal (Fxxx series method)" communication method
  "Normal" communication method
  MEASURE
  Measurement result
  OK
  MEASURE
  OK
  Measurement result
