Judgment Conditions (Scan Edge Positions)

Specify the range to be judged as OK.

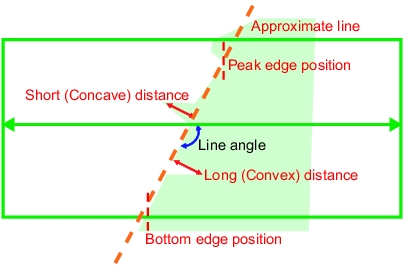

Illustrations of judgement condition
  1. In the "Item tab" area, tap [Judgement].
  2. Set up the judgement condition.

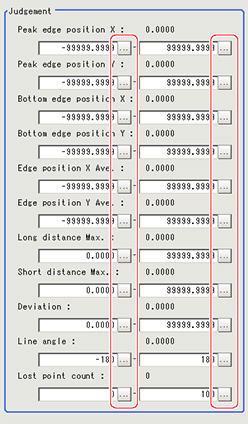

    Judgement - "Judgement condition" area
    Note
    • The values beside each item are measurement results of the displayed image.Take these values into consideration to determine the upper and lower limits.
    Setting item
    Set value
    Description
    Peak edge position X
    -99999.9999 to 99999.9999
    Specify the X-axis upper and lower limits of the peak edge position X judged to be OK.
    Peak edge position Y
    -99999.9999 to 99999.9999
    Specify the Y-axis upper and lower limits of the peak edge position Y judged to be OK.
    Bottom edge position X
    -99999.9999 to 99999.9999
    Specify the X-axis upper and lower limits of the bottom edge position X judged to be OK.
    Bottom edge position Y
    -99999.9999 to 99999.9999
    Specify the Y-axis upper and lower limits of the bottom edge position Y judged to be OK.
    Edge position X Ave.
    -99999.9999 to 99999.9999
    Specify the X-axis upper and lower limits of the average edge position judged to be OK.
    Edge position Y Ave.
    -99999.9999 to 99999.9999
    Specify the Y-axis upper and lower limits of the average edge position judged to be OK.
    Long distance Max.
    0 to dist (X_MAX, Y_MAX)
    Specify the upper and lower limits of the long distance maximum judged to be OK.
    Long distance Min.
    0 to dist (X_MAX,Y_MAX)
    Specify the upper and lower limits of the long distance minimum judged to be OK.
    Short distance Max.
    0 to dist (X_MAX, Y_MAX)
    Specify the upper and lower limits of the short distance maximum judged to be OK.
    Short distance Min.
    0 to dist (X_MAX, Y_MAX)
    Specify the upper and lower limits of the short distance minimum judged to be OK.
    Deviation
    0 to dist (X_MAX, Y_MAX)
    Specify the upper and lower limits of the deviation judged to be OK.
    Angle
    -180 to 180
    Specify the upper and lower limits of the line angle judged to be OK.
    Lost point
    0 to 100
    Specify the upper and lower limits of the lost point count judged to be OK.
    * dist (X_MAX,Y_MAX) = sqrt (X_MAX*X_MAX+Y_MAX*Y_MAX)
