Color Specification (Labeling)

When connecting a color camera, specify the color to be measured.There are two specification methods: specifying the color to be extracted in the image or specifying the color with the hue, saturation, and brightness values.
This section describes how to specify colors in an image and gives an example of the procedure for finely adjusting with numeric input afterwards.
  1. In the "Item tab" area, tap [Color setting].
  2. Place a check at [Automatic].
  3. In the "Image display" area, specify the color range you want to detect by dragging the cursor from the upper left corner to the lower right corner of that area.
    The color of the specified area is automatically set.
    Color specification - "Color specification setting" area
  4. Finely adjust the hue, saturation, and brightness if necessary.
    Adjust either by adjusting on the color chart or by inputting numbers.
    Item
    Set value
    [Factory default]
    Description
    H
    0 to 359
    Specify the color phase (difference of color hues).
    S
    0 to 255
    Specify color saturation (difference of color saturation).
    V
    0 to 255
    Specify the brightness (difference of brightness).
    Automatic
    • Checked
    • [Unchecked]
    Specifying the color to be measured on the image automatically sets the hue, saturation, and brightness.
    Color inv.
    • Checked
    • [Unchecked]
    Everything other than the specified color becomes the measurement target.

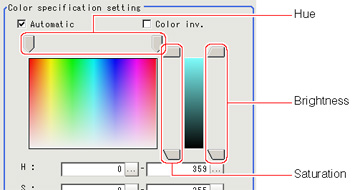

    About color charts
    Color specification - "Color specification setting" area
  5. To specify multiple colors, place a check at "More ranges of color extraction".
    Color specification - "Color specification setting" area
    Setting item
    Set value
    [Factory default]
    Description
    More ranges of color extraction
    • Checked
    • [Unchecked]
    If you place a check at this option, you can set up to 8 colors.
    Color specification - "Image display" area
  6. If necessary, set the display conditions for displayed images.
    Color specification - "Display setting" area
    Setting item
    Set value
    [Factory default]
    Description
    Exclude this color
    • Checked
    • [Unchecked]
    If you place a check at this option, pixels within the HSV range are excluded from color extraction.The priority order for exclusion is that the higher color extraction range numbers are given priority.This setting is disabled if "More ranges of color extraction" is unchecked.

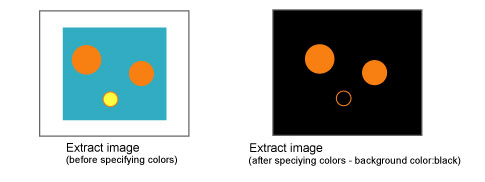

    Background color
    • [Black]
    • White
    • Red
    • Green
    • Blue
    The background section outside the extracted image is filled with the specified colors.
    [Display setting]
    • Measurement image
    • [All color image]
    • Selection color image
    • Binary image
    This sets the state of the image to display.
