Settings Flow (Number of Edge Pins)

Set the number of edge pins with the following steps.

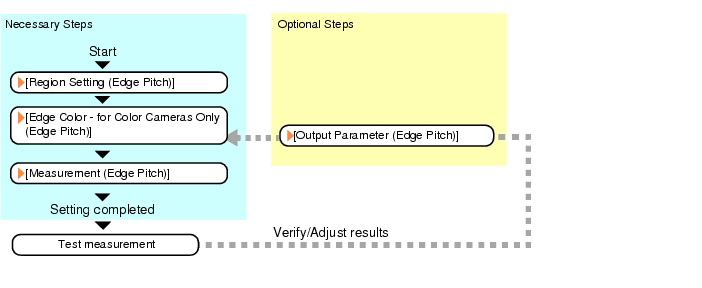

Number of edge pins - Operation flowRegion settingEdge color - For color cameras onlyOutput parameterMeasurement parameter

Item List for Number of Edge Pins

Item name
Description
Region setting
This item is used to set up the measurement area.
Edge color specification
(for color cameras only)
This item selects the color information for the edges to be detected.
Measurement parameter
This item specifies the judgement condition for measurement results.Measurement parameter can be changed as needed to address unstable measurement results.
Specify the pitch and width for counting edges.
The displayed items depend on whether your camera is a color or monochrome camera.Normally, the factory default value will be used.
Measurement Parameters (Number of Edge Pins)
Output parameter
This item can be changed if necessary.Normally, the factory default value may be used.
Select the measurement result coordinates and set how to handle the coordinates.
Output Parameters (Number of Edge Pins)
