Setting Methods

Rectangle

  • Image selection status
    Illustration of rectangle figure selection status
    Points are displayed at each of the four corners.
  • Dimension Adjustment
    Drag the points.
    Illustration of how to adjust the size of the rectangle
    • Example) When enlarging
      Drag the lower right point down in a diagonal direction.
      Illustration for how to adjust the overall size of the rectangle
  • Using numbers for setting
    The window for settings is split into two.Setting is performed through input of numbers or through tapping on the arrows.

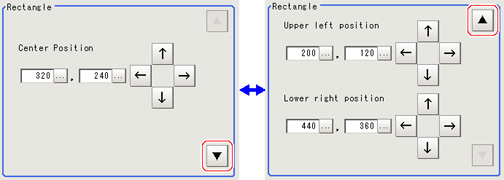

    Detail Setting window (rectangle)

Line

  • Image selection status
    Illustration of line figure selection status
    Points are displayed at the starting point, ending point, and midpoint of lines.
  • Dimension Adjustment
    Drag the points.
    Illustration of how to adjust dimensions of the line
    • Example) When changing the length of a line
      Drag the points toward the intended direction.
      Illustration of how to change the length of the line
    • Example) When changing the oblique direction
      Drag a point in the direction the line is to be changed.
      Illustration of how to change the direction of the line
    • Example) When changing the line width
      Drag the center point of the line in a direction perpendicular to the line.
      Illustration of how to change the thickness of the line
  • Using numbers for setting
    The window for settings is split into two.Setting is performed through input of numbers or through tapping on the arrows.

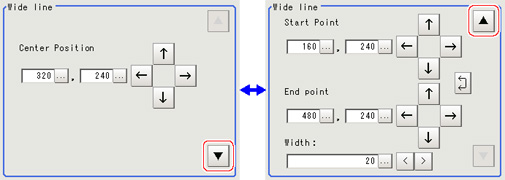

    Detail setting window (line)

Circle/Ellipse

  • Image selection status
    Illustration of selection status for a circle or ellipse figure
    Points are displayed on the top, bottom, left, right, and lower right of the circle.
  • Dimension Adjustment
    Drag the points.
    Illustration of how to adjust the size of a circle or ellipse
    • Example) When zooming in on a circle
      Drag the point on the lower right of the circle.
      Illustration of how to enlarge a circle or ellipse
    • Example) When transforming a circle into a long horizontal ellipse
      Drag the point on the right of the circle to the right.
      Illustration of how to change a circle to an ellipse
  • Using numbers for setting
    The window for settings is split into two.Setting is performed through input of numbers or through tapping on the arrows.

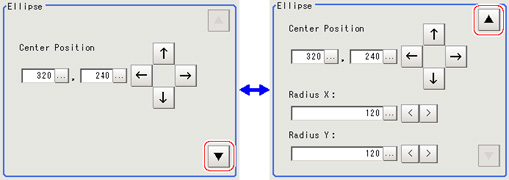

    Detail setting window (circle, ellipse)

Circumference

  • Image selection status
    Illustration of wide circle figure selection status
    Points are displayed on the top, bottom, left, and right of both the inner and outer circles.
  • Dimension Adjustment
    Drag the points.
    Illustration of how to adjust the size of wide circle
    • Example) When enlarging the entire circumference
      Drag a point on the outer circle.
      Illustration of how to enlarge wide circle
    • Example) When adjusting the width of the circumference
      Drag a point on the inner circle.
      Illustration of how to adjust the width of wide circle
  • Using numbers for setting
    The window for settings is split into two.Setting is performed through input of numbers or through tapping on the arrows.

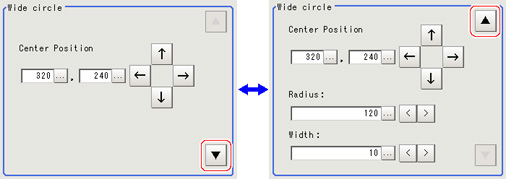

    Detail setting window (wide circle)

Arc

  • Image selection status
    Illustration of arc figure selection status
    Points are displayed on two lines at both ends of the arcs, on the inner arc, on the outer arc, and inside the closed arc shape.
  • Dimension Adjustment
    Drag the points.
    Illustration of how to adjust the size of an arc
    • Example) When enlarging an arc
      Drag the point inside the arc outward.
      Illustration of how to enlarge an arc
    • Example) When adjusting the width of an arc
      Drag a point on the inner or outer arc inward or outward.
      Illustration of how to adjust the width of an arc
    • Example) When changing the angle of arc (part that is open)
      Drag one of the points at the end of the arc.
      Illustration of how to change the angle of an arc
  • Using numbers for setting
    The window for settings is split into three.Setting is performed through input of numbers or through tapping on the arrows.

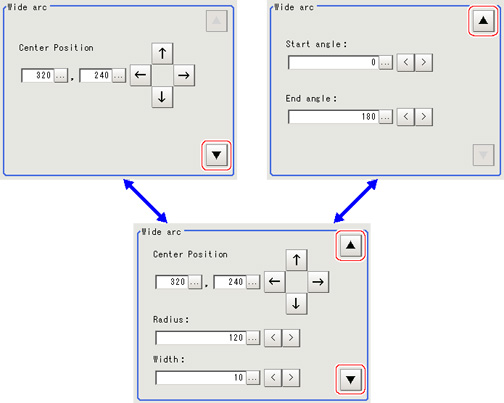

    Detail setting window (arc)

Crosshair Cursor

  • Image selection status
    Illustration of crosshair cursor selection status
    Entire image is selected.
  • Using numbers for setting
    Setting is performed through input of numbers or through tapping on the arrows.The line type and line color can also be changed at this window.
    Detail setting window (crosshair cursor)

Polygons (Triangle to Decagon)

  • Drawing methods (for drawing a quadrilateral)
    Illustration for drawing a polygon figure
    1. When [Polygon] is specified, a triangle is drawn at first.
    2. If you drag and drop one of the sides at the point you want to make a new vertex, a new vertex will be created.
    If the number of vertexes is not within 3 to 10, the image cannot be confirmed as a polygon.
  • Image selection status
    Illustration of polygon figure selection status
    Points are displayed at the vertexes of the figure.
  • Dimension Adjustment
    Drag the points.
    Illustration of how to adjust the size of a polygon
    • Example) When changing the angle of one point
      Drag point (arbitrarily).
      Illustration of how to change one angle of a polygon
    • Example) When changing the region
      Drag point (arbitrarily).
      Illustration of how to change the area of a polygon
  • Using numbers for setting

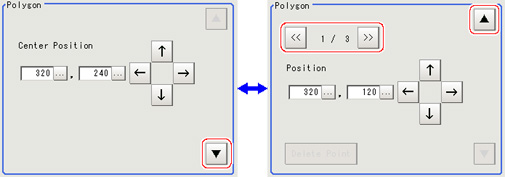

    The window for settings is split into two.Setting is performed through input of numbers or through tapping on the arrows.
    Detail setting window (polygon)

Text

  • Image selection status
    Illustration of text figure selection status
    Entire image is selected.
Note
  • "Text" can only be used in the [Result display] processing item.

Time

  • Image selection status
    Illustration of time figure selection status
    Entire image is selected.
Note
  • "Time" can only be used in the [Result display] processing item.
