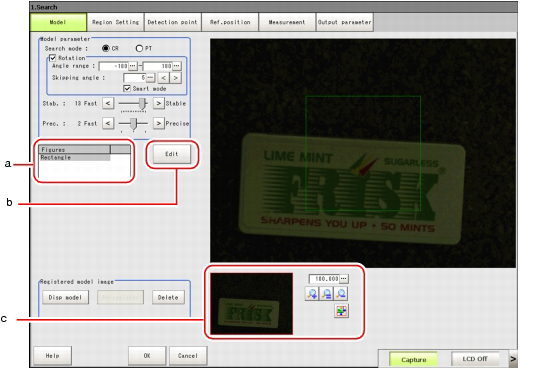

Layout of Figure Setting Area
Window for registering figures when registering or setting areas or models as measurement objects.
- Figures
Displays a list of names of objects that have been set. The figure at the bottom of the list is the nearest object in the foreground. The higher the sequence position of the object, the further back in the background it is. When objects are drawn overlapping, the settings for the object set last are valid.
- [Edit]
Used to edit a figure. The following figure editing tool is displayed.
- Drawing tool buttons
Sets objects, such as figures and text. The number and type of objects available is different depending on the applicable setting (ex. "Result display", "Model", "Region setting").
- Object editing buttons
Buttons for editing objects
- Details
Shows the details of the selected figure. Specify the object coordinates or radius. Tapping [
] or [
] will display the items currently not displayed.
- Zoom browser area
Magnifies the image display area by the selected magnification factor.
