Capturing Screens

The contents displayed in the monitor screen can be captured.Saved images can be loaded into the PC and pasted to documents.

Important

Capture takes a few seconds and measurement cannot be performed at this time.

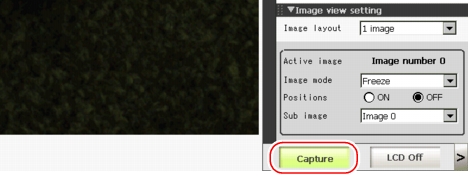

Open the measurement manager bar at the bottom right of the Main screen and tap [Capture].
Note
- The same operation can also be performed by tapping the [System] menu - [Screen capture] - [Screen capture].

About capture image files

This section explains the format and file names for capture images.
With factory settings, capture images are saved to the RAMDisk.The save destination can be changed.

Item	Description
File format	The file format is BMP.
File name	The file name is the date and time at which capture was performed. YYYY-MM-DD_HH-MM-SS-MS.BMP Year (4 digits) -Month- Date_ Hour- Minute- Second- Millisecond Example) The file name for a capture date and time of 3/10/2007, 11:25:30.500: 2007-03-10_11-25-30-500.BMP

Note

The following windows cannot be captured.
- The window to select a file or a folder
- Confirmation message window when LCD is turned off

Setting the Save Destination for Captured Images

Sets the save destination for the image captured with the screen capture function.

On the Main screen, tap the [System] menu - [Screen capture] - [Screen capture setting].
The Screen Capture Setting window is displayed.
Specify the save destination for captured images.
Tap [OK].
The settings are determined and the Screen Capture Setting window closes.
