Loading Settings Data to Controller

Loads the settings data saved in an external device to the controller. The scene name and scene group name that have been loaded are displayed in the measurement information display area.

Note

If "Load from file" is performed for system + scene group 0 data, the data being loaded will also be saved to the controller flash memory at the same time.During loading, do not restart, turn off power or remove the USB memory. Data will be corrupted and the system will not work properly at the next startup.

Perform either of the following.
- Plug the USB memory device which has the load data stored in it into the controller.
- Send setting data to the controller's RAM Disk via FTP.
On the Main screen, tap the [Data] menu - [Load from file].

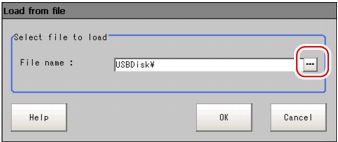

The Load from File window is displayed.

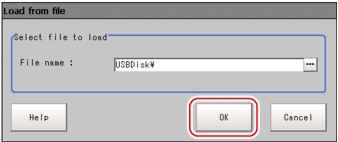

Select the file to load.
Tap [OK].
The window showing the transfer status is displayed, and the data is transferred.
