Panorama+

This is a processing item for just FZ3-Hxxx series high grade controllers.

Images from multiple cameras are combined into one image.

5 megapixel cameras cannot be used.

Used in the Following Case

To combine the input images from multiple cameras

Camera Placement and Image Combination Method

Place the cameras so that the field of vision of each camera overlaps at least 1/4.
To place cameras and combine the images, we recommend using the following setting images.

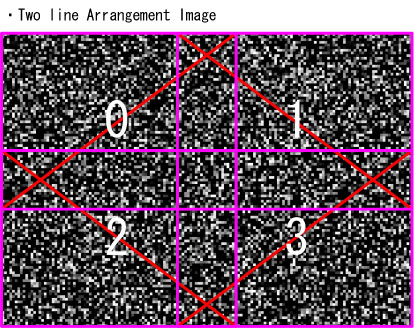

For 2 x 2 camera placement

Set the camera placement.
Adjust the camera placement so that the fields of vision overlap at least 1/4 for Cameras 0 and 1, 1 and 2, and 2 and 3.
Set the image combination method.
Use the X and Y parallel movement buttons in the software to adjust so that the overlapping sections of neighboring images match.
Combine the image.
Tap the feature point combination button in the software.

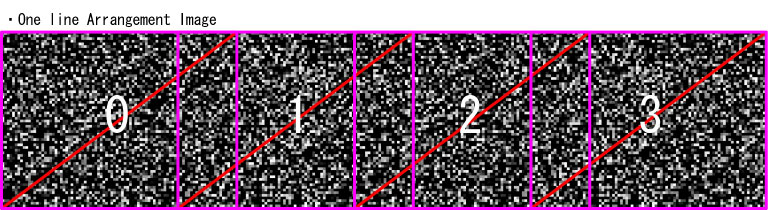

For 1 x 4 camera placement

Set the camera placement.

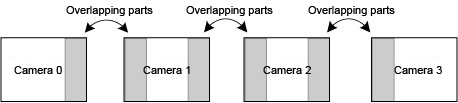

Adjust the camera placement so that the fields of vision overlap at least 1/4 for Cameras 0 and 1, 1 and 2, and 2 and 3.
Set the image combination method.
Use the X and Y parallel movement buttons in the software to adjust so that the overlapping sections of neighboring images match.
Combine the image.
Tap the feature point combination button in the software.
