Capturing a Screen [Capture]

If opening the Measurement Manager bar on the lower right of the Main screen and tapping at [Capture], you can capture the content displayed on the monitor. After being read into PC, the Saved images are Pasted into files.
Important
  • It takes a few seconds to capture images, during which no measurement is possible.
Screen capture can be performed from the Measurement Manager bar on the lower right of the screen.
  1. Open the Measurement Manager bar on the lower right of the Main screen and tap [Capture].

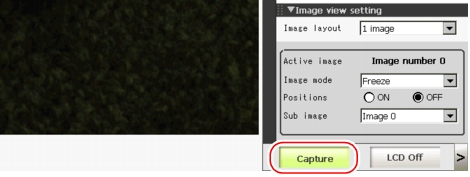

    Main Screen - Measurement Manager bar
    Note
    • An alternative operation: tap [System] - [Screen capture] - [Screen capture].
Important
  • The following windows cannot be captured.
    • The window to select a file or a folder
    • The Confirmation window which is displayed when the LCD's power is OFF.
Capture Images
After capturing, the captured images are saved into specified destination. You can specify where to save capture images in [Screen capture setting]. Setting the Destination to Save Capture Image [Screen capture setting]
Table: Image Capture
File Name
Description
Save the image viewed in monitor screen in BMP format.
Image File name is set as "capture time: year(4 digits of western calendar) -month- date_ hour- minute- second- millisecond".
Example)
Capture time: 11:25:30.500 am, March 10th, 2007.
Image file: "2007-03-10_11-25-30-500.BMP".
