[Color Setting (3D Circle Search)]

[Color Setting (3D Circle Search)]

Set the circle color and background color. Specify whether the circle color is darker or lighter than the background color.

In the "Item tab" area, tap [Color Setting].
If necessary, check "Color specification" in the "Color setting" area.
Specify a color.

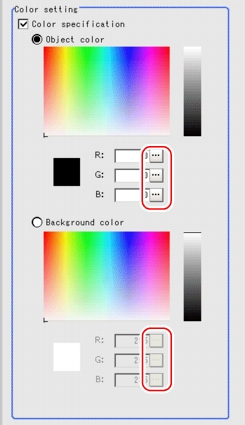

In the "Color setting" area, tap [...] for "R" (red), "G" (green), and "B" (blue), and specify a value for each color. Specify the circle color and the background color separately.
How to input a value: User's Manual, "Inputting a Value"
Each target color is set in the "Color setting" area.
Note
- In the "Image display" area, you can specify the color area you want to detect by dragging the cursor from the upper left corner to the lower right corner of that area.
