[Detection Point (ECM Search)]

This item can be changed if necessary. When a model is registered, its detection point coordinates are automatically set to the central coordinates of the model. This item can be used to change the detection coordinates to any desired position.

For the detection point, see

User's Manual, "Terminology".

Note

After changing the detection coordinates to another position, re-registering the model will change it back to the central coordinates of the model.

In the "Item tab" area, tap [Detection point].

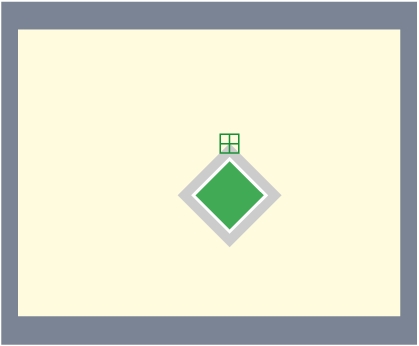

In the "Image display" area, the current detection point is displayed with a cross-shaped cursor.
Change the detection coordinates.
Using arrow buttons to change the detection point coordinates:
In the "Detection coordinate" area, tap one of the arrow buttons.
In the "Image display" area, the cross-shaped cursor will move one pixel per tap.
The X and Y coordinate values in the "Detection coordinate" area will also change as the cross-shaped cursor moves.
Specifying values to change the detection point coordinates:
In the "Detection coordinate" area, tap [...] for each of [X] and [Y] to specify a value for your desired detection coordinates.
How to input a value:User's Manual, "Inputting a Value"
The cross-shaped cursor in the "Image display" area will move to the specified coordinate position.

Note

Tips for position adjustment

You can easily specify the detection point if you first input approximate coordinate values and then adjust them using arrow buttons in the "Detection coordinate" area. The Zoom function is useful for fine adjustment.
For the Zoom function, see User's Manual, "Using Zoom Function".
