Configuring Color Processing

The images acquired from cameras are available with color information such as R(Red)/G(Green)/B(Blue). RGB images allow to adjusting color intensity within the range of 0 to 255, while 16.7 million colors are rendered on the screen.
It indicates black color in the case of RGB=0, or white color in the case of RGB=255.
Illustration of RGB
During measurement of color images, many colors can be measurement by adjusting RGB.

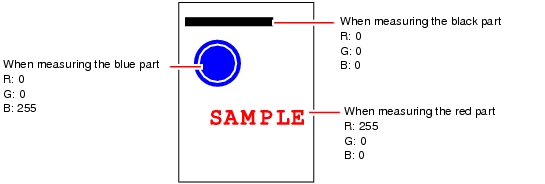

Illustration of Color Measurement Specimen
Note
  • For monochrome cameras, color processing is not performed.
