Filtering
Process the images acquired from cameras in order to make them easier to be measurement.
Used for the following case

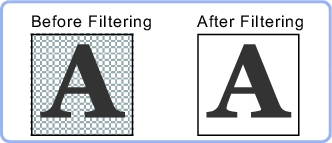

- When cutting the unnecessary background images, leaving only what needs to be measurement

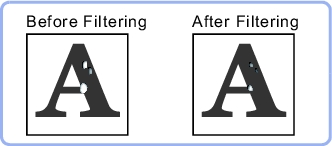

- When noise shall be removed

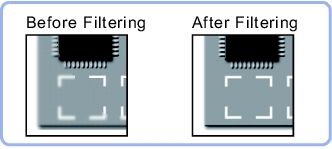

- When other edges have been extracted, you still cannot see the marked edge clearly.
Important
- The filtering cannot be used for 3D measurement.
List of Filtering Items
Table:
List of Filtering Items
|
|
|
Images acquired from the camera are processed to make them easier to be measured. There are nine filtering processing methods: [Weak smoothing], [Strong smoothing], [Dilate], [Erosion], [Median], [Extract edges], [Extract horizontal edges], [Extract vertical edges], and [Enhance edges]. [Filtering Parameter (Filtering)] |
|
Specify a region to which to apply filtering. Instead of measuring the entire input image, narrowing the measurement region shortens the processing time. [Region Setting (Filtering)] |
