Circular Shape Angle Acquisition

Circle Angle

Used in the Following Case

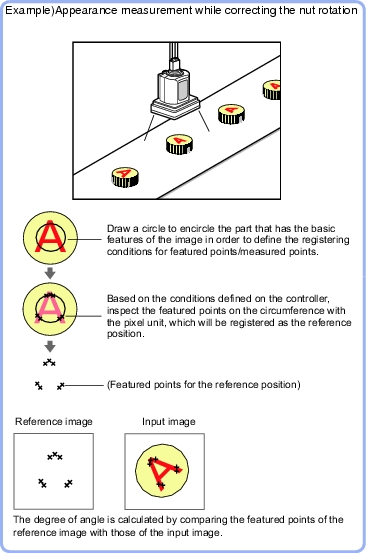

To correct the tilting of circle measurement objects

Note

The center position of the measured object should be always fixed in order to efficiently use the Circle Angle.Prior to Circle Angle, processing items related to position correction should be performed, making the central coordinates of the measurement object stay at a fixed position.
Example)

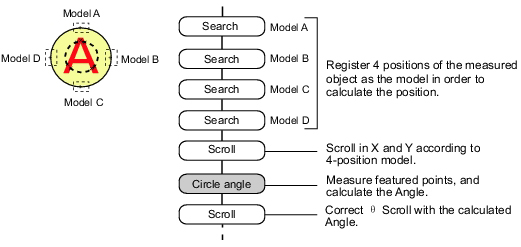

Position compensation for Circular Shape Angle Acquisition.
