Settings Flow (Model Dictionary)

Follow the steps below to set up [Model Dictionary].

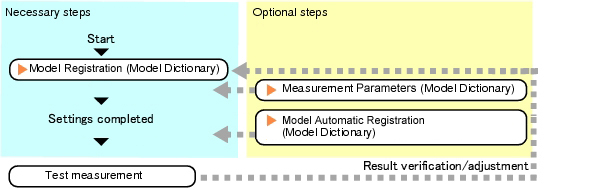

Model Dictionary - Operation flowModel Automatic RegistrationModel RegistrationMeasurement Parameters

List of Model Dictionary Items

Model Dictionary items are explained below.
Item name
Description
Model register
Register the characters and marks as the model.
Model parameter values can be changed as needed to address unstable measurement results or to increase the processing speed.Normally, the factory default value will be used.
Model Registration (Model Dictionary)
Measurement
This item can be changed if necessary.
Measurement Parameters (Model Dictionary)
Auto registration
When registering multiple characters as models, auto registration is handy.This method encloses a character string, cuts out one character at a time from it and registers them as models.
Model Automatic Registration (Model Dictionary)
