Settings Flow (Classification)

Classification can be set up as follows.

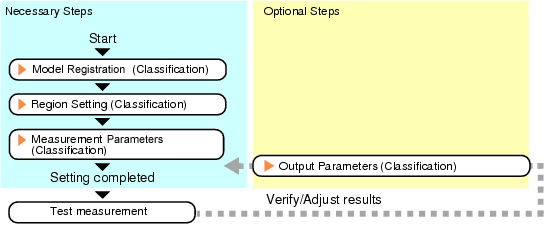

Classification - Operation flowModel RegistrationRegion SettingMeasurement ParametersOutput Parameters

List of Classification Items

Item name
Description
Model register
This item registers the pattern characteristic of the measurement image as a model.
Model parameter values can be changed as needed to address unstable measurement results or to increase the processing speed.Normally, the factory default value will be used.
Model Registration (Classification)
Region setting
This item is used to set up the measurement area.
Instead of measuring the entire input image, narrowing the measurement area shortens the processing time.
Region Setting (Classification)
Measurement
This item specifies the judgement condition for measurement results.Specify the criteria to judge the measurement result if the X and Y coordinates and the correlation with the model are OK.
Measurement Parameters (Classification)
Output parameter
This item can be changed if necessary.Normally, the factory default value will be used.
Use the output parameter to specify how to handle the coordinates.
Output Parameters (Classification)
