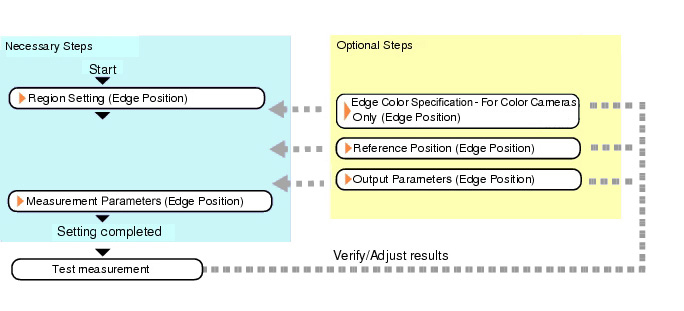

Region setting

This item is used to set up the measurement area.

Edge color
(for color cameras only)

If the color of the edges to be detected is decided, specify the color.

Ref. position

The edge position is registered as the reference when the region is set.Change as necessary.
Reference Position (Edge Position)

Measurement

This item specifies the judgement condition for measurement results.
Measurement parameter can be changed as needed to address unstable measurement results.
The displayed items depend on whether your camera is a color or monochrome camera.Normally, the factory default value will be used.
Measurement Parameters (Edge Position)

Output parameter

This item can be changed if necessary.Normally, the factory default value may be used.
Select the measurement result coordinates and set how to handle the coordinates.
Output Parameters (Edge Position)
