Filter Setting (Anti Color Shading)

This item sets the filter.
  1. In the Item Tab area, tap [Filter setting].
  2. In the "Display" area, tap [Change display] to switch between camera image types.
    Filter setting - "Display" area
    The displayed contents of the Image Display area will be switched.
    Setting item
    Set value
    [Factory default]
    Description
    Display
    Through image display
    The latest image is always input from the camera and displayed.
    [Freeze image display]
    The image that was scanned in the immediately preceding measurement is displayed.
  3. The section with color contrast on the image is enclosed.
    The image with the contrast suppressed is displayed.
    Filter setting diagram

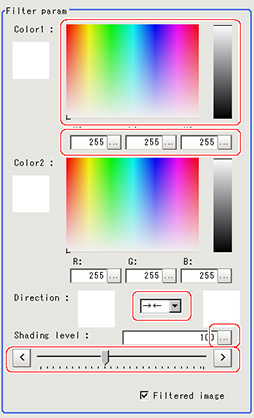

  4. Adjust the color, conversion direction, and Anti Color Shading level as necessary.
    The picked up 2 colors are displayed at Color 1 and Color 2.
    Fine adjustments can also be made to the R, G, and B values and on the color chart.
    Measurement - "Reference color" area
    Setting item
    Set value
    [Factory default]
    Description
    Color 1
    • R
      0 to [255]
    • G
      0 to [255]
    • B
      0 to [255]
    The most separate two colors are picked up from the specified region.
    The sections corresponding to these colors in the region are converted to the color midway between the two.
    Color 2
    • R
      0 to [255]
    • G
      0 to [255]
    • B
      0 to [255]
    Direction
    • [IconIcon]
    • Icon
    • Icon
    Select the conversion method for the set Color 1 and Color 2.
    IconIcon:Color 1 and Color 2 are converted to the color midway between the two.
    Icon:Color 1 is converted to Color 2.
    Icon:Color 2 is converted to Color 1.
    Shading level
    0 to 255
    [100]
    Set the level for suppressing color contrast.
    The larger this value, the less the color contrast.
  5. As necessary, set the display image.
    Measurement - "Reference color" area
    Setting item
    Set value
    [Factory default]
    Description
    Filtered image
    • [Checked]
    • Unchecked
    To display the original image, uncheck here.
