Processing Items List Manual
Processing Item List > Measurement > 2D Code+ > Settings Flow (2D Code+)Settings Flow (2D Code+)

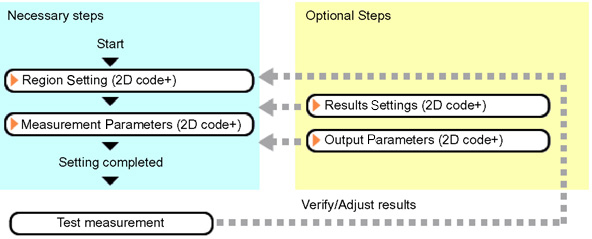

The setting procedure for 2D Code+ is as follows.
List of 2D Code+ Items
Item name | Description |
|---|---|
Region setting | This item is used to set up the measurement area. Restricting the measurement area can shorten the processing time.  Region Setting (2D Code+) |
Measurement | This item specifies the judgement condition for measurement results.Set the code type and the number of characters to be judged as OK. Measurement Parameters (2D Code+) |
Results settings | Set the measurement results.Judgement results can be classified. Results Settings (2D Code+) |
Output parameter | This item can be changed if necessary.Normally, the factory default value will be used. Output Parameters (2D Code+) |
