About Lenses

When using a camera (single), refer to the following tables to prepare the lens and extension tube. The lens may vary depending on the size of measurement objects and the camera setting distance.

Optical Diagrams

0.3 megapixel digital camera (stand-alone) FZ-SIcon

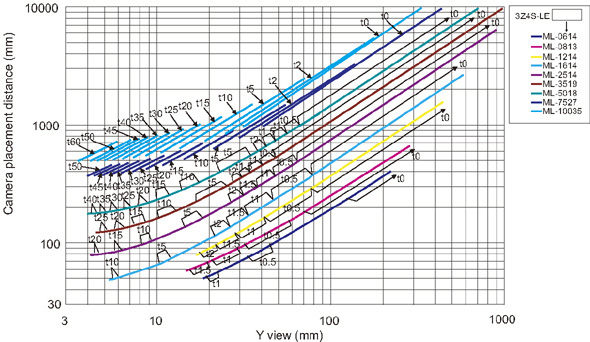

Optical Diagrams
2 megapixel digital camera (stand-alone) FZ-SIcon2M

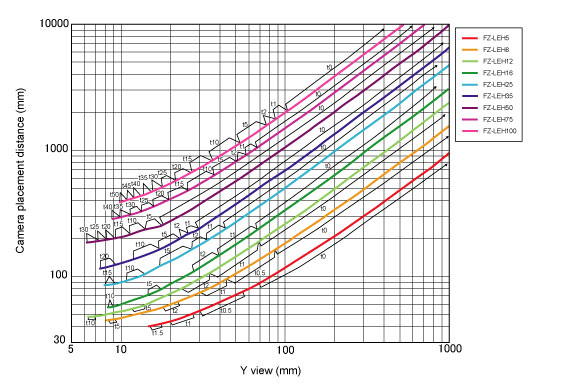

Optical Diagrams
*The 5 mm extension tube (3Z4S-LE ML-EXR) cannot be connected with the FZ-LEH25.
5 megapixel digital camera (stand-alone) FZ-SIcon5M

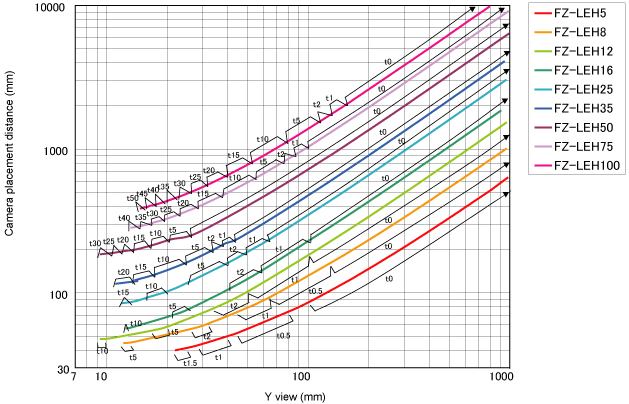

Optical Diagrams
Diagram view
The horizontal axis of the diagram indicates the Y field of view (mm), and longitudinal axis indicates camera setting distance (mm).This diagram shows the relationship between the field of view of lenses and the setting distance for different types. Make sure to verify the lens type when checking the graph as the field of view value is different for each type. Points such as "t5.0" on the graph correspond to the thickness of the extension tube used. "t0" is used if an extension tube is not necessary, and "t5.0 is used if a 5 mm extension tube is used.
(Example)
If the field of view of measurement object is 40 mm, and a 3Z4S-LEML-5018 lens is used, the camera setting distance is set at 500 mm, and a 5 mm extension tube is required.

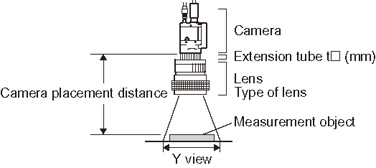

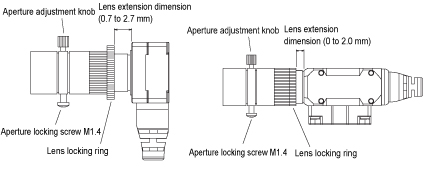

Illustration of CCTV lens and extension tube
Small camera FZ-SFIcon/SPIcon series
Optical Diagrams

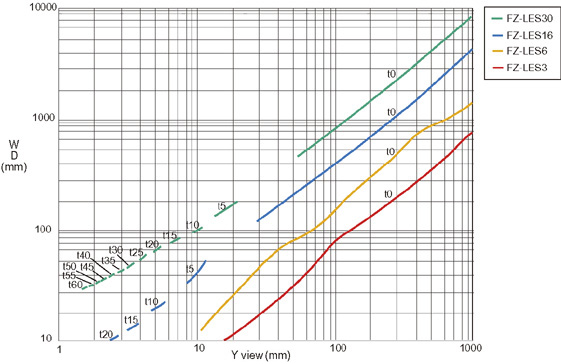

Diagram view
The horizontal axis of the diagram indicates the Y field of view (mm), and longitudinal axis indicates WD (mm).This diagram shows the relationship between the field of view of lenses and the setting distance for different types. Make sure to verify the lens type when checking the graph as the field of view value is different for each type. Points such as "t5.0" on the graph correspond to the thickness of the extension tube used. "t0" is used if an extension tube is not necessary, and "t5.0 is used if a 5 mm extension tube is used.

Lens Types and Outside Diameters

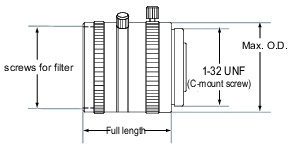

Illustration of types and outside diameters of lens
Lens 3Z4S-LE ML series
Lens type
Focal distance
Brightness
Max. O.D.
Full length
Filter size
3Z4S-LE ML0614
6 mm
F1.4
φ30 mm
30 mm
M27 P0.5
3Z4S-LE ML0813
8 mm
F1.3
φ30 mm
34.5 mm
M25.5 P0.5
3Z4S-LE ML1214
12 mm
F1.4
φ30 mm
34.5 mm
M27 P0.5
3Z4S-LE ML1614
16 mm
F1.4
φ30 mm
24.5 mm
M27 P0.5
3Z4S-LE ML2514
25 mm
F1.4
φ30 mm
24.5 mm
M27 P0.5
3Z4S-LE ML3519
35 mm
F1.9
φ30 mm
29 mm
M27 P0.5
3Z4S-LE ML5018
50 mm
F1.8
φ32 mm
37 mm
M30.5 P0.5
3Z4S-LE ML7527
75 mm
F2.7
φ32 mm
42.5 mm
M30.5 P0.5
3Z4S-LE ML10035
100 mm
F3.5
φ32 mm
43.9 mm
M30.5 P0.5
High resolution and low distortion lens Model FZ-LEHx series
Lens type
Focal distance
Brightness
Max. O.D.
Full length
Filter size
FZ-LEH5
5 mm
F2.8
φ42 mm
38.7 mm
M40.5 P0.5
FZ-LEH8
8 mm
F1.4
φ34 mm
41.6 mm
M27.0 P0.5
FZ-LEH12
12 mm
F1.4
φ34 mm
37.0 mm
M27.0 P0.5
FZ-LEH16
16 mm
F1.4
φ33 mm
36.5 mm
M27.0 P0.5
FZ-LEH25
25 mm
F1.4
φ33 mm
39.5 mm
M27.0 P0.5
FZ-LEH35
35 mm
F2
φ34 mm
36.5 mm
M27.0 P0.5
FZ-LEH50
50 mm
F2.8
φ34 mm
55.0 mm
M27.0 P0.5
FZ-LEH75
75 mm
F2.5
φ36 mm
51.0 mm
M34.0 P0.5
FZ-LEH100
100 mm
F2.8
φ50 mm
70.0 mm
M40.5 P0.5
Lens for small digital cameras FZ-LESx series
Lens type
Focal distance
Brightness
Max. O.D.
Full length L
FZ-LES3
3 mm
F2.0
φ12 mm
16.4 mm
FZ-LES6
6 mm
F2.0
φ12 mm
19.7 mm
FZ-LES16
16 mm
F3.4
φ12 mm
23.1 mm
FZ-LES30
30 mm
F3.4
φ12 mm
25.5 mm
Illustration of types and outside diameters of lens

Extension Tube

An extension tube, which is installed between lens and camera, is used to adjust focal distance. Different combinations of the 7 tubes can be used to achieve any desired thickness.
Illustration of extension tubes
Max. O.D.
Thickness
φ30
Illustration of various extension tubes

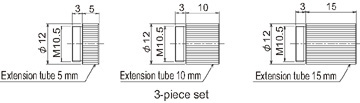

Extension tubes for small digital cameras FZ-LESR
Illustration of extension tubes
Max. O.D.
Thickness
φ12
Illustration of various extension tubes
Note
  • Do not overlap the 0.5 mm, 1.0 mm and 2.0 mm extension tubes.
    Since these lenses are installed between the lens and the threaded section of another extension tube, overlapping of 2 or more of these tubes will cause unstable fixation.
  • When a close-up exceeds 30 mm, reinforcement is necessary depending on the amount of vibration.
