Communication Example

This section introduces methods for outputting logging image files using Internet browsers.
When actually performing this operation, it is necessary to create software for outputting data.
Important
  • In the case of FZ3-9IconIcon/H9IconIcon, only RAMDisk can be accessed.
  1. Input the controller IP address in the Internet browser.
    (Here, the default controller address 10.5.5.100 is used as an example of IP address.)

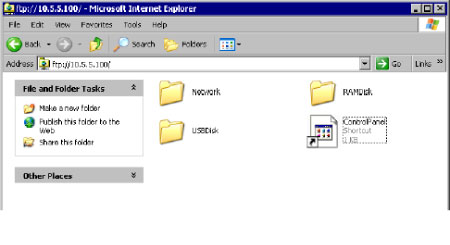

    The folders in the controller are shown.
    FTP Communication - Reference window
    Folder name
    Description
    Network
    This folder is used for management. Data cannot be saved within this folder.
    RAMDisk
    This folder is for storing logging images and data files. When the RAMDisk is set as the save destination, files are stored in this folder.
    USBDisk
    Displayed when a USBDisk is plugged into the controller. When the USBDisk is set as the save destination, files are stored in this folder. In the case of FZ3-9IconIcon/H9IconIcon, it cannot be accessed.
    Control Panel.lnk
    This file is used for management. Do not delete this file.

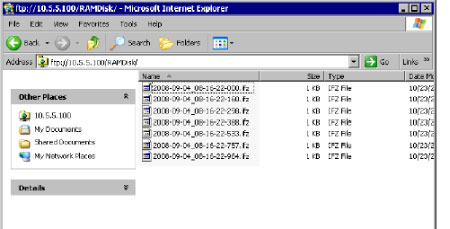

  2. To view the inside of the RAMDisk, enter RAMDisk at the end of the IP address.
    When the RAMDisk is set as the image logging destination, the logging files are displayed.
    FTP Communication - Reference window
  3. In the same way as with normal file operations, logging images can be output from the controller.
