Timing Chart (PLC Link)

This section explains timing charts for command, response, output, and measurement commands.

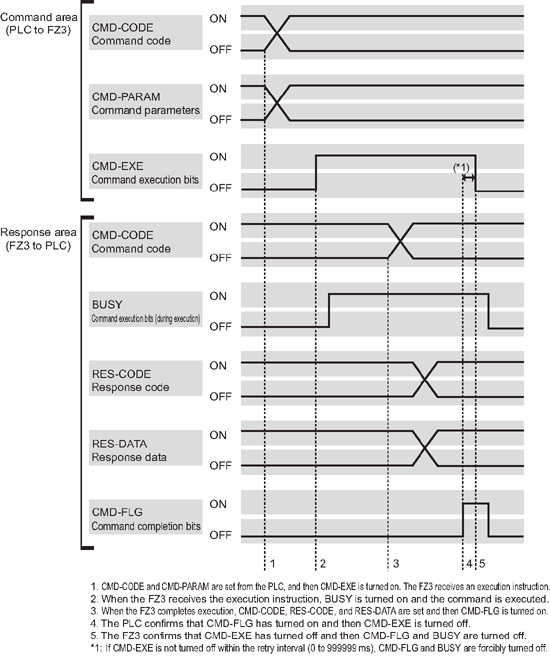

Command to Response

PLC link timing chart

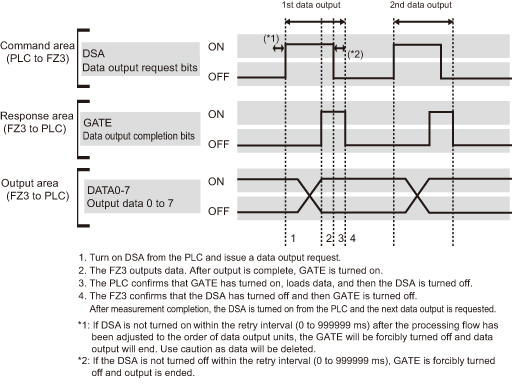

Data Output

PLC link timing chart

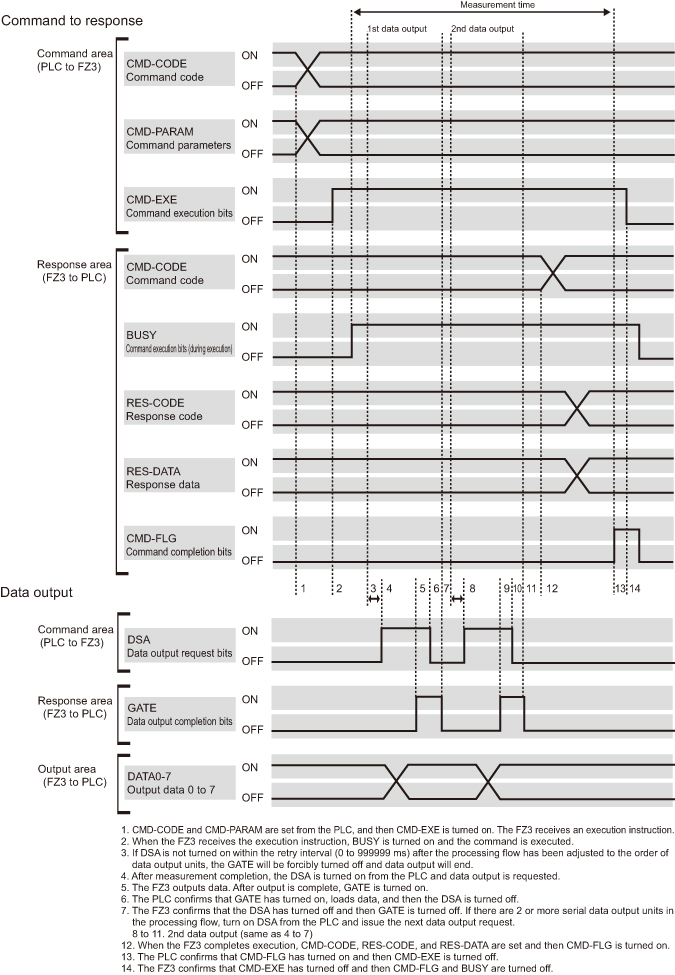

Measurement Command Details

PLC link timing chart
