Setting the Encoder Trigger [Encoder Trigger Setting]

On the Main screen, tap the [System] menu - [Controller] - [Encoder trigger setting].

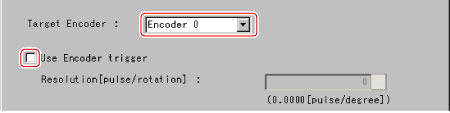

Set the target encoder.
Setting item
Set value
[Factory default]
Description
Target Encoder
[Encoder 0]
Encoder 1
Sets the encoder to be used.
Use Encoder trigger
Checked
[Unchecked]
Sets whether the encoder trigger will be used.

Setting item	Set value [Factory default]	Description
Target Encoder	[Encoder 0] Encoder 1	Sets the encoder to be used.
Use Encoder trigger	Checked [Unchecked]	Sets whether the encoder trigger will be used.

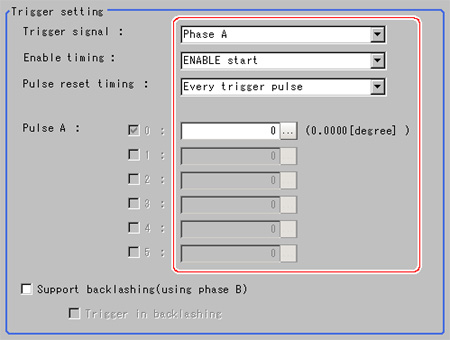

Set the trigger detailed settings as required.

Setting item		Set value [Factory default]	Description
Trigger signal		[Phase A] Phase Z	Sets the trigger signal.
When phase A
	Pulse reset timing	[Every trigger pulse] Every rotation (Pulse Z) STEP	Sets the timing for resetting.
	Phase A	[0] to 65536	Sets the pulse width.
	Support backlashing	[Checked] Unchecked	Sets whether the rotation direction is detected.
	Trigger in backlashing	Checked [Unchecked]	Sets whether a trigger is produced during reverse rotation.
When phase Z
	Pulse reset timing	[Every trigger pulse] STEP	Sets the timing for resetting.
	Phase Z	[0] to 1023	Sets the pulse width.
