Scan Edge Widths

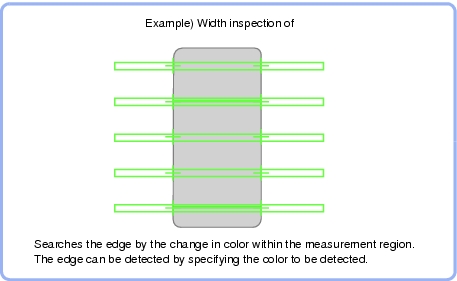

This processing item detects the position of the measurement object by using the change in color within the measurement region.By dividing the measurement region, you can get the following values.

Local width of the work
Average width of the work

Used in the Following Case

When getting several widths of a measurement object
To find the width of a measurement object
Using a Expression, the width of a measurement object can be calculated from the difference between two edge positions.

Note

Edge image measurement processing mechanism
See "User's Manual", "Edge Detection Measurement"
