Results Display

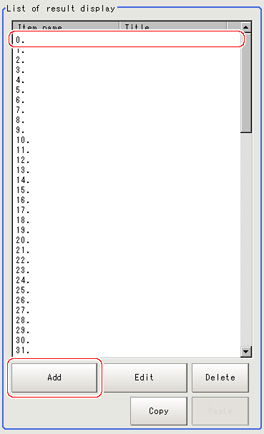

  1. In the "List of result display" area, select the number with which to set the object and tap [Add].
    Result display- "List of result display" area
  2. Select the object to be added in the Select Items to Display window and tap [OK].
    Select items to display window
    The selected object is added to the "List of result display" area and the "Image display" area.
  3. In the "List of result display" area, select the object and tap [Edit].
    Result display - List of result display with added objects
    Setting options are displayed. The setting items are different depending on the object.
  4. Tap [Change title] as necessary to change titles displayed in the list of result display.
    Result display - "Detail" area
    Up to 15 characters can be entered.

When Rectangle, Line, Wide Circle, Ellipse, Arc, or Crosshair Cursor is Selected

Specify display position, style, width, and color of figure.
Setting item
Setting item
Description
Display position
Disp pos
Figure (or Numerical)
Select this if you would like the figure to always display in the same location.Methods for specifying display position include drawing the figure on the window and indicating coordinates numerically.
If you would like to always display the figure in a reference position, set up an expression using "Operation".
Operation
Select this when you would like to change display position for each measurement based on the measured value.Set up the expression to specify the display position.
Style
  • Solid line
  • Dashed line
Select the line type.
Width
1 to 10
Modify the line width.
Color
OK Color
Displayed in green.
NG Color
Displayed in red.
Judgement
Displayed using OK color or NG color based on the judgement results.Specify measurement values subject to judgement and set up respective judgement conditions.
Arbitrary color
Displayed using specified color.Methods for specifying color include specifying by tapping on a color chart and specifying RGB values.

When String Display, Measurement, Processing Item Name, Judge Display, or Display Date is Selected

Sets display position, size, and color etc. of characters.
Common settings
Setting item
Setting item
Description
Display position
Figure (or Numerical)
Select this if you would like the figure to always display in the same location.
Methods include specifying by tapping on the window and specifying coordinate values.
However, if you would like to always display the figure in a reference position, set an expression using "Operation".
Operation
Select this when you would like to change display position for each measurement based on the measured value.Set up the expression to specify the display position.
Detail
Setting item
Setting item
Description
Align
  • Top
  • Bottom
  • Left
  • Center
  • Right
Specify the alignment of the text.
Size
10 to 200
Specify the font size.
Angle
0 to 359
Specify the display angle.
Style
  • Bold
  • Italic
  • Under line
  • Mark out
Specify the character decoration.
Color
OK Color
Displayed in green.
NG Color
Displayed in red.
Judgement
Displayed using OK color or NG color based on the judgement results.Specify measurement values subject to judgement and set up respective judgement conditions.
Arbitrary color
Displayed using specified color.Methods for specifying color include specifying by tapping on a color chart and specifying RGB values.
String display
Setting item
Description
Set letter
Set characters within 64 characters.
Judge display
Setting item
Description
Judge type
Specify measurement values subject to judgement and set up respective judgement conditions.Displays using OK letter or NG letter based on the judgement results.
Judgement condition
OK letter
Sets characters displayed for the case that judgement results are OK.
NG letter
Sets characters displayed for the case that judgement results are NG.
Display date
Setting item
Setting item
Description
Date kind
  • Month/Day/Hour/Minute/Second
  • Month/Day/Hour/Minute
  • Hour/Minute/Second
  • Hour/Minute
Select display format
Please adjust the calendar time that comes with the controller in advance.
"User's Manual", "Setting the Date and Time [Date-time Setting]"
Measurement
Setting item
Setting item
Description
Measurement
Specify the measurement value you would like to display using expression.
Integer
1 to 10
Specify the digits of the integer part including the sign. For positive numbers, the plus sign is not output.
Example
Setting: 4 digits, data -5619
-999 is output.
Decimal
0 to 4
Set the number of decimal fraction digits. When 0 is selected, the decimal digits will be rounded off.
Processing item name
Setting item
Description
Processing Item
Choose processing item name from among the scenes being displayed.
