Measurement Parameters (Labeling)

This item specifies the judgement condition for measurement results.
Measurement parameter can be changed as needed to address unstable measurement results or to increase the processing speed.Normally, the factory default value will be used.
  1. In the "Item tab" area, tap [Measurement].
  2. If necessary, in the "Labeling condition" area, specify a value for each item.
    Measurement parameters - "Labeling Condition" area
    Setting item
    Set value
    [Factory default]
    Description
    Filling up holes
    • Checked
    • [Unchecked]
    Select the process method for the part encircled by the designated color circle.
    When checked, the hole is processed as having the specified color.
    Measurement Parameters - Filling up holes

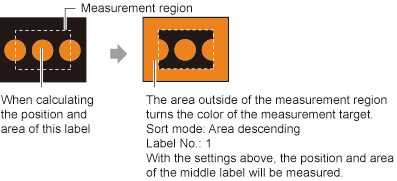

    Outside trimming
    • Checked
    • [Unchecked]
    This option can be used only when there is a section of the designated color in the measurement region that does not need to be measured.
    When "Checked" is set, the whole area outside of the measurement region is extracted as having the specified color.
    Measurement parameters - Outside trimming
    Object area range
    0 to 999999999
    Specify the range of the area to be judged as a label.
    Sort condition
    • Area ascending
    • [Area descending]
    • X ascending
    • X descending
    • Y ascending
    • Y descending
    Specify the conditions by which label number is re-assigned.
    When sorting referencing the X and Y coordinates, the upper left is the origin.
    Label No.
    [0] to 2499
    Input the label number for the data to be output.
  3. If necessary, in the "Display setting" area, set up display settings for the images displayed in the "Image display" area.
    For color cameras:
    Region setting - "Display setting" area
    Setting item
    Set value
    [Factory default]
    Description
    Extract image
    • [Checked]
    • Unchecked
    If you place a check at this option, images set with color specification are displayed.
    For monochrome cameras:
    Measurement parameters - "Display setting" area
    Setting item
    Set value
    [Factory default]
    Description
    Binary image
    • [Checked]
    • Unchecked
    The image is displayed in binary with black and white.
  4. When the setting has been changed, tap [Measure] in the "Detail" area to verify whether measurements can be made correctly.
    Measurement - "Detail" area
  5. Set up the judgement condition.
    Measurement - "Judgement condition" area
    Note
    • The value beside each item are measurement results of the displayed image.Take these values into consideration to determine the upper and lower limits.
    Setting item
    Set value
    Description
    Number of labels
    0 to 2500
    Specify the number of labels to be judged as OK..
    Area
    0 to 999999999.9999
    Specify the area to be judged as OK.
    Gravity X
    -99999.9999 to 99999.9999
    Specify the range of X-axis shifting that is judged to be OK.
    Gravity Y
    -99999.9999 to 99999.9999
    Specify the range of Y-axis shifting that is judged to be OK.
