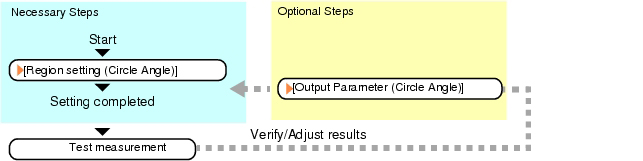

Settings Flow (Circular Shape Angle Acquisition)

The circular shape angle acquisition should be set up with the following procedure.
Circular Shape Angle Acquisition - Operation flowRegion settingOutput parameter

List of Circle Angle Items

Item name
Description
Region setting
This item is used to set up the measurement area.
Instead of measuring the entire input image, narrowing the measurement area shortens the processing time.If measurement results are unstable, change detection conditions as needed. Normally, the factory default value will be used.
Region Setting (Circular Shape Angle Acquisition)
Output parameter
This item can be changed if necessary.Normally, the factory default value may be used.
Select the measurement result coordinates and set how to handle the coordinates.
Output Parameters (Circular Shape Angle Acquisition)
