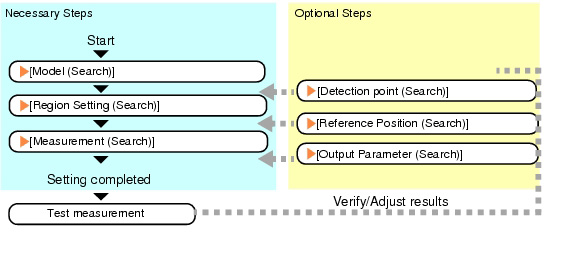

Model Registration

This item registers the pattern characteristic of the measurement image as a model.
Model parameter values can be changed as needed to address unstable measurement results or to increase the processing speed.Normally, the factory default value will be used.
Model Registration (Search)

Region setting

This item is used to set up the measurement area.

Instead of measuring the entire input image, narrowing the measurement area shortens the processing time.
Region Setting (Search)

Detection point

This item can be changed if necessary.Specify a position in the model that should be used as the detection coordinates during measurement. Usually, the central position of the set model is registered as the detection coordinates.
Detection Point (Search)

Reference position

This item can be changed if necessary.Specify the reference position within the camera's field of view.
Reference Position (Search)

Measurement parameter

This item specifies the judgement condition for measurement results.Specify the criteria to judge the measurement result if the X and Y coordinates and the correlation with the model are OK.
Measurement Parameters (Search)

Output parameter

This item can be changed if necessary.Normally, the factory default value will be used.
Use the output parameter to specify how to handle the coordinates.
Output Parameters (Search)
