Handling Coordinates

The processing items for measuring positions have a setting item called "Output parameter" with which you can select how to handle coordinates.
In "Output parameter", you can set "Output coordinates" or "Calibration".

Output Coordinates

Select coordinate types to be output to external devices.

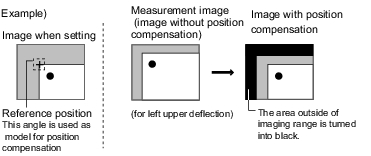

Illustration of selecting coordinate types
Before position compensation
Coordinate values before position compensation are output.
Illustration of coordinate value before position compensation
After position compensation (with factory settings)
Coordinate values after position compensation are output.
Illustration of coordinate value after position compensation

Calibration

Select whether or not to perform calibration when selecting output to external devices.
Calibration
Calibration: ON
Calibration is performed during output and measured values after calibration are output.
Calibration: OFF
Calibration is not performed during output, and coordinate values from camera images are output.
