Timing Chart (PLC Link)

This section explains timing charts for command, response, output, and measurement commands.

Command to Response

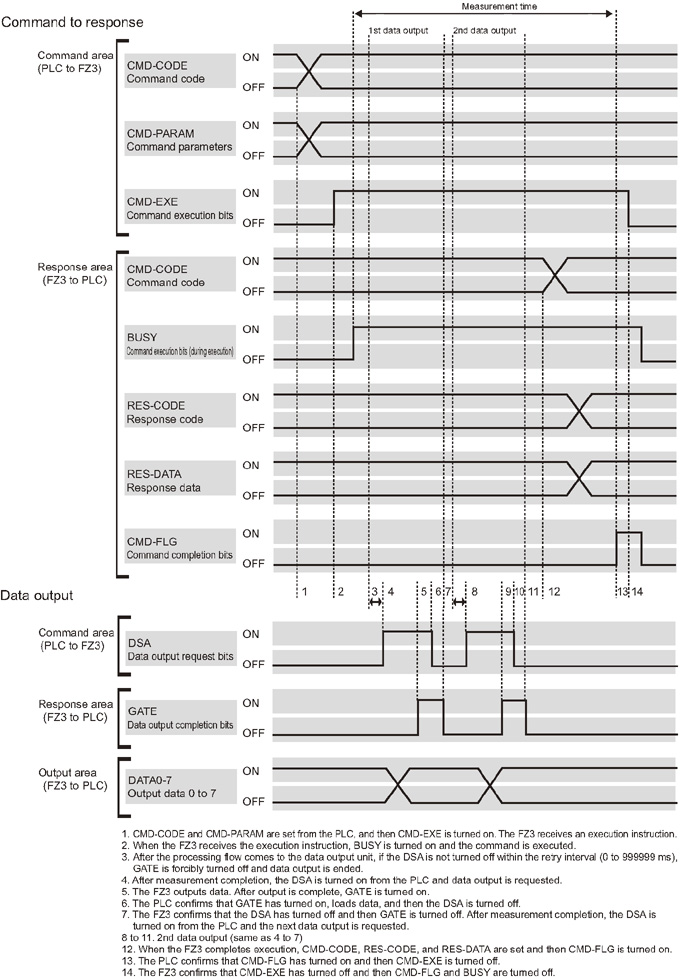

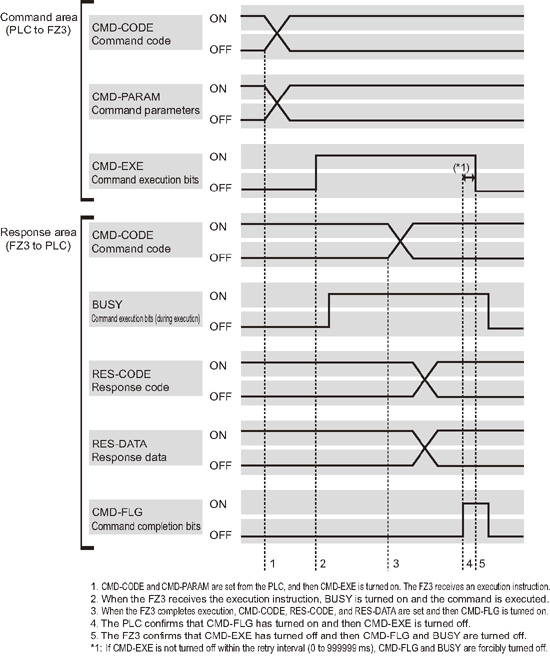

PLC Link timing chart

Data Output

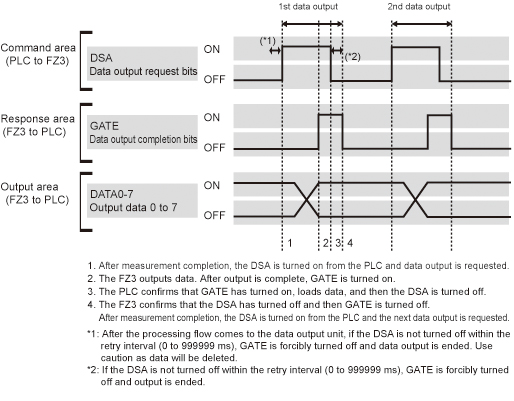

PLC Link timing chart

Measurement Command Details

PLC Link timing chart
