Verifying Configurations

Configuration 1: Used on 1 Controller

USB memory is used to Save back-up data into PC.
Illustration of using the equipment on 1 controller

Configuration 2: Connect Controller and External Devices

PC is connected to external devices via RS-232C/422 or parallel cables.
External devices allow measurement command input, or measurement results acquisition.
For details, see How To Connect & Communicate With External Devices.

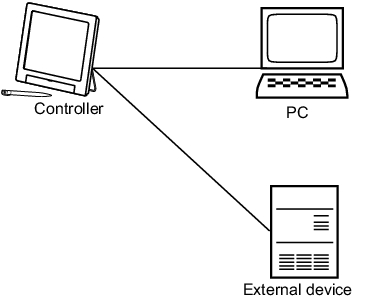

Illustration of one-to-one connection of PC and controller

Configuration 3: Connect Controller and External Devices to Ethernet

Where LAN is available, one controller and more than one PC can be connected to LAN.
Measurement commands can also be input from external devices.
In this case, setup should be made to the network.
For details, see Ethernet Connection.

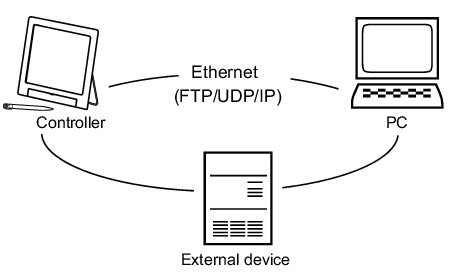

Illustration of Ethernet connection
