Guide of FZ_CustomControl

FZ_CustomControl is the set of parts for user interface, which are intended to program FJ system control in simple way.
It contains many controls, and this chapter shows the overview of the frequently used controls.
For details, refer to FZ_CustomControl Reference.

Setting and refering unit data

Appearance	Control name	Purpose
	CheckBoxEx	Set ON / OFF status.
	CalculationBox	Show and editting calculation form.
	ComboBoxEx	Select one item from multiple items.
	LabelEx	Show text and numeric data.
	LimitBox	Set upper and lower limitation.
	NumericBox	Set numeric data.
	RadioButtonEx	Select one item from multiple items.
	SliderSet	Set numeric data.
	SoftKeyboard	Set text string. Pressing button on the right shows software keyboard.
	TextBoxEx	Show text string.
	UnitComboBox	Select one processing unit from all the units in current scene.
	UnitList	Show all the processing unit in current scene.
	ValueSetControl	Set numeric data. Pressing button shows ten key panel.

These controls have common properties shown below. By setting these properties, the value of the control is linked to unit data, and automatically updated.

Property	Value
DataType	UnitData
DataIdent	Identification string of external reference data
UnitNo	Number of processing unit

In addition, by setting "RefreshWindow" property, the control automatically update image display when the value of the control is changed.

Display image for setting

These controls are used for displaying image, and setting figure position or color.

	SetupImageWindow	Display image.

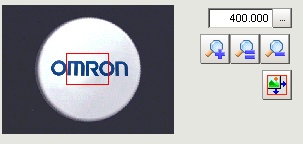

	ZoomBrowser	Set position and rate of zooming.

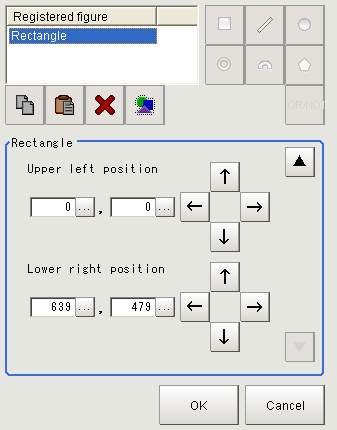

	FigureSetControl	Set figure position.
	PointSetControl	Set one position in the image.
	StandardSetControl	Set standard position in the image.

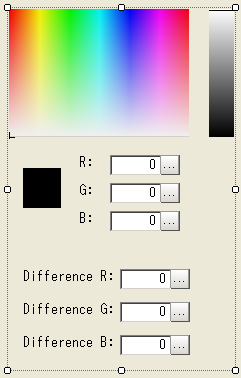

	ColorSetControl	Select color.

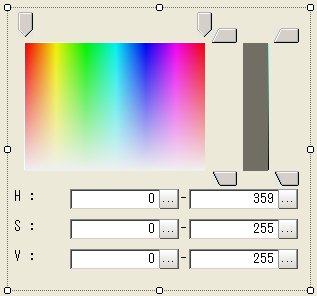

	ColorExtractControl	Set range of color.
	GrayExtractControl	Set binary level.

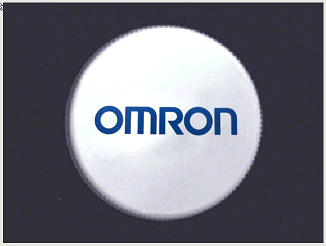

SetupImageWindow is a control for displaying image. These properties are to be set to use this.

Property	Value
unitNo	Unit number to display
subNo	Image sub number to display
throughDisp	True: Through False:Freeze
ZoomPosX ZoomPosY ZoomRate	Zoom rate and position

For other controls, it is necessary to set "ImageWindow" property as target SetupImageWindow.
Then the control is linked to SetupImageWindow, and work together with it.

Display measurement result image

To display measurement result image, MeasureImageWindow is used.
To control the image shown on MeasureImageWindow, use CoreRA API FZ_PanDAForm.SetImageWindow.
