Parallel Command Process Event

Register the method to be executed when there is an input from a parallel command. Add the parallel command processing event as follows:

1.Add the ParallelCommand control

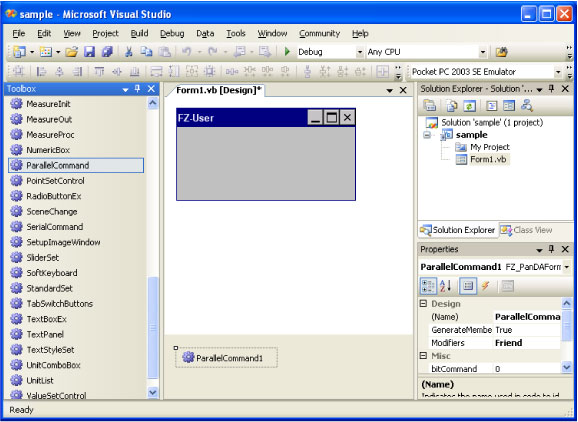

Select the ParallelCommand control from the toolbox and then Drag & Drop it to a position on the Form.

2.Set the properties

Display the Property window of the parallel command control added and set the following properties.

userForm : A form object to receive events from CoreRA.

bitMask : DI pin bit mask setting

bitCommand : DI pin input bit pattern

The registered event handler is executed when there is a DI pin input satisfying the conditions specified by bitMask and bitCommand.

For example, when bitMask is set to &H007F and bitCommand is set to &h0040, the registered method is executed when the condition <DI pin input> And &H007F) = &h0040) is satisfied.

''3.Adding the event handler

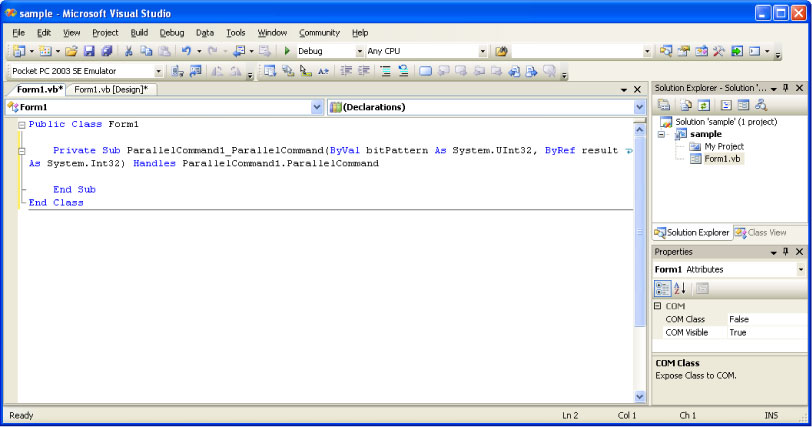

Double-click the parallel command control added or click the event button

to display the event for the object. And then double-click the [ParallelCommand] field to add the event handler.

Describe the process to be executed when a serial normal command is input in the added event handler.

The following arguments are passed to the added event.

Table: Arguments
Item	Meaning	Description
bitPattern	DI pin input information	None.
result	Command processing result storage variable	On abnormal completion, the ERROR pin is set to ON.

Note

When performing a scene switch, scene group switch, or register/insert/delete/copy processing unit, be sure to disable/enable the measurement trigger. This event handler does not disable/enable the measurement trigger.
