Error Handling Event
Register the methods to be executed when the following error occurs.
- System error
- Fan/voltage error
- Camera connection error
- Image logging disk write error
- Parallel output timeout
Add the error handling event as follows:

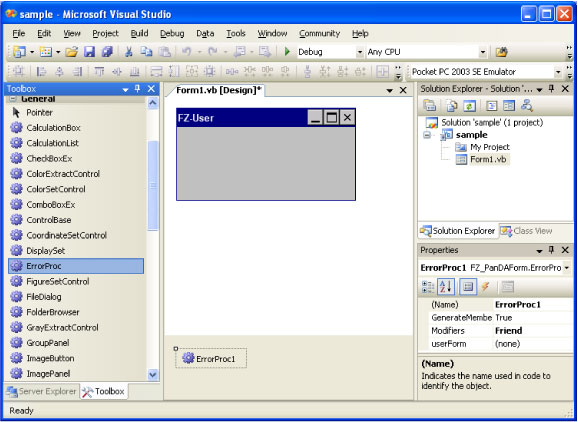

1.Add the ErrorProc control
Select the ErrorProc control from the toolbox and then Drag & Drop it to a position on the Form.
2.Set the properties
Display the Property window of the error processing control added and set the following properties.
userForm : A form object to receive events from CoreRA

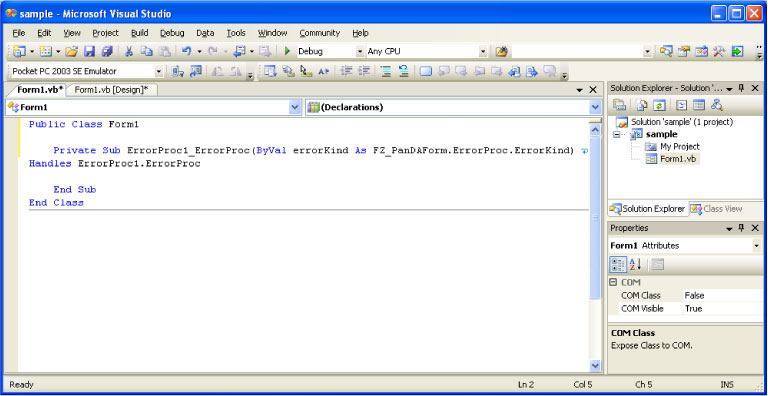

3.Add the event handler
Double-click the error processing control added or click the event button
to display the event for the object. And then double-click the [ErrorProc] field to add the event handler.
to display the event for the object. And then double-click the [ErrorProc] field to add the event handler.Describe the process to be executed when an error occurs in the added event handler.
The following arguments are passed to the added event.
| Item |
Meaning |
Description |
|---|---|---|
| errorKind |
Error information |
ErrorProc.ErrorKind.SystemError (system error) ErrorProc.ErrorKind.FanError (Fan/voltage error) ErrorProc.ErrorKind.CameraError (Camera connection error) ErrorProc.ErrorKind.ImageLoggingError (Image logging disk write error) ErrorProc.ErrorKind.ParallelIoTimeout (Parallel output timeout) |
