Display the measurement value (measurement count, OK count, NG count) graphically

Overview

Display the measurement value (measurement count, OK count, NG count) graphically.

Specification of this example

Behavior

Count the measurement value (measurement count, OK count, NG count) of selected processing unit, and display bar chart of them in MDI child window.

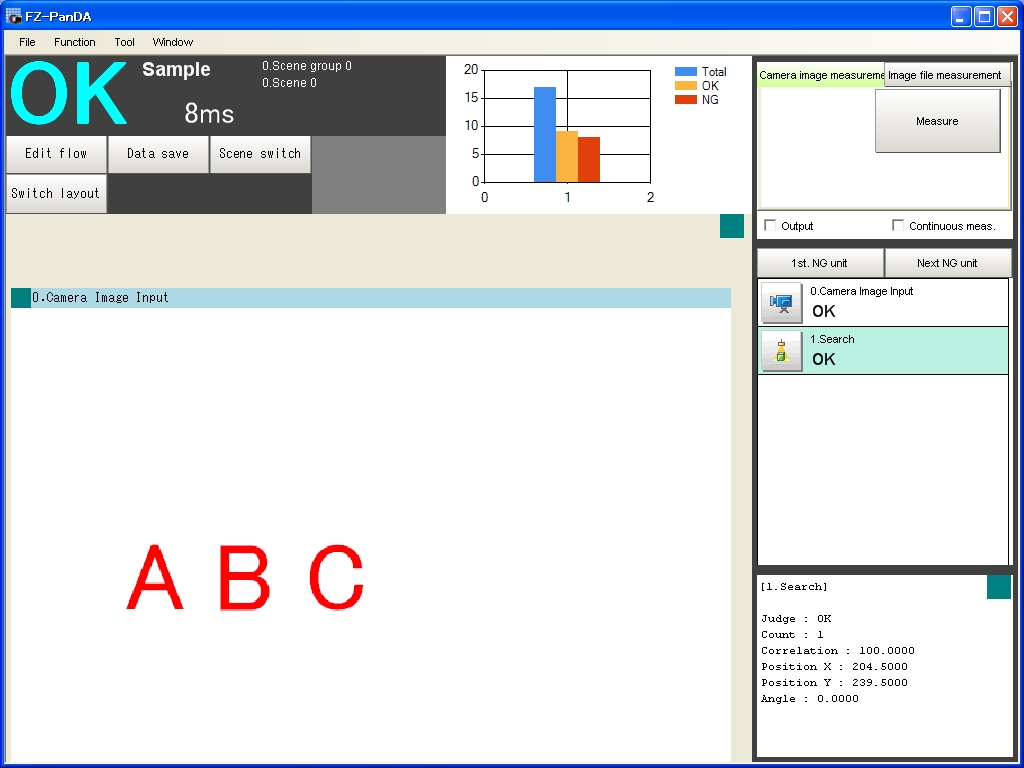

Screenshot

How to try this example
1.Click the link below, then the folder containing zip file automatically opens.

File

2.Right-click and hold on the zip file, and drop it on working window of FJ system, then the demo-tool automatically starts.

3.Click "Start MDI Child Window" button in the program, then MDI Child window will be added to the screen.

4.Click "Re-Measure" button, then system remeasures example image files.
System counts the measurement value (measurement count, OK count, NG count) of selected processing unit, and display bar chart of them in MDI child window.

IMPORTANT

This sample uses Microsoft Chart Controls for Microsoft .NET Framework 3.5.
Refer to link below for installing it.
http://www.microsoft.com/downloads/en/details.aspx?FamilyId=130F7986-BF49-4FE5-9CA8-910AE6EA442C&displaylang=en

How to implement

Scene data

Unit No.	Processing Item
0.	Camera Image Input
1.	Search

Process of UI unit

Public Class Macro_VB_DisplayBarChart

    '**********************************************************************
    ' Definition of setting data.
    '**********************************************************************
    Public Class DataDef

        ' Code example :
        Public unitNo As Integer

    End Class

    Private Shared sumMeasurement As Integer
    Private Shared sumOK As Integer
    Private Shared sumNG As Integer


    '**********************************************************************
    ' Definition of default value of setting data.
    '**********************************************************************
    Public Shared Shadows ReadOnly Property DefaultSetting() As String
        Get
            Dim dataSet As New DataDef

            '(1)
            dataSet.unitNo = 0

            sumMeasurement = 0
            sumOK = 0
            sumNG = 0

            Return ObjToString(dataSet)
        End Get
    End Property

    '**********************************************************************
    ' title         : Measurement display procedure
    ' function name : MeasureDispProc
    ' parameters    : none
    ' description   :
    '       This subroutine is called on each measurement display time.
    '**********************************************************************
    Public Overrides Sub MeasureDispProc()
        MyBase.MeasureDispProc()

        '(2)
        Call DispGraph()
    End Sub

    Private Sub DispGraph()
        Dim dataSet As DataDef = StringToObj(Me.SettingData)
        Dim result As Integer

        '(3)
        result = FZ_FormBase.FZ_FormBase.GetUnitJudge(dataSet.unitNo)
        sumMeasurement = sumMeasurement + 1

        '(4)
        If result = 1 Then
            sumOK = sumOK + 1
        ElseIf result = -1 Then
            sumNG = sumNG + 1
        End If


        With Chart1
            '(5)
            .Series.Clear()

            '(6)
            Dim ChartName As String
            ChartName = "Total"
            .Series.Add(ChartName)
            ChartName = "OK"
            .Series.Add(ChartName)
            ChartName = "NG"
            .Series.Add(ChartName)

            .Series(0).Points.Add(sumMeasurement)
            .Series(1).Points.Add(sumOK)
            .Series(2).Points.Add(sumNG)

            '(7)
            .ChartAreas(0).RecalculateAxesScale()
        End With

    End Sub
End Class

Explanation

(1)Set initial values.
(2)Display bar chart when execute measurement.
(3)Get the judgement result of selected processing unit, and increment measurement count.
(4)Increment OK count or NG count by the judgement result.
(5)Clear the setting of chart control.
(6)Set the measurement value (measurement count, OK count, NG count) to chart control.
(7)Refresh scales of x-axis and y-axis of the chart.

Source codes

Total source codes can be get from

here.
