Set the same unit parameter collectively

Overview

Set the same unit parameter in the scene collectively.

Specification of this example

Behavior

Copy the value to a specified unit by the macro. Call Macro by clicking the button on the form of PanDA.

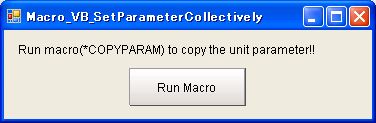

Screenshot

How to try this example
1.Click the link below, then the folder containing zip file automatically opens.

File

2.Right-click and hold on the zip file, and drop it on working window of FJ system, then the demo-tool automatically starts.

3.Click "Start PanDA Form" button in the program, then the PanDA form will start.

4.Click "Re-Measure" button, then system remeasures example image files.
When click the button on the form, copy the value(RGB) of the unit1 to the unit2-4.

How to implement

Scene data

Unit No.	Processing Item
0.	Camera Image Input
1.	Gravity and Area
2.	Gravity and Area
3.	Gravity and Area
4.	Gravity and Area
5.	Macro

The Macro Program below segment is to be set in '5.Macro'.

Macro Program

*MEASUREPROC

Return

*COPYPARAM
    UNITNO& = 1
    COPYUNIT1& = 2
    COPYUNIT2& = 3
    COPYUNIT3& = 4

    AR& = UnitData(UNITNO&,121)         '(1)
    AG& = UnitData(UNITNO&,122)
    AB& = UnitData(UNITNO&,123)

    SetUnitData COPYUNIT1&,121,AR&      '(2)
    SetUnitData COPYUNIT1&,122,AG&
    SetUnitData COPYUNIT1&,123,AB&

    SetUnitData COPYUNIT2&,121,AR&
    SetUnitData COPYUNIT2&,122,AG&
    SetUnitData COPYUNIT2&,123,AB&

    SetUnitData COPYUNIT3&,121,AR&
    SetUnitData COPYUNIT3&,122,AG&
    SetUnitData COPYUNIT3&,123,AB&
Return

The macro program is in

this link.

Explanation

(1)Get the value of the source.
(2)Set the value to the destination unit.

Process of UI unit

Public Class Macro_VB_SetParameterCollectively

    Private Sub ImageButton1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles ImageButton1.Click
        Dim unitCount As Integer
        unitCount = GetUnitCount()                                                   '(1)

        For i As Integer = 1 To unitCount
            If GetUnitTitle(i - 1) = "Macro" Then                                    '(2)
                FZ_FormBase.FZ_FormBase.SetUnitData(i - 1, "gosub", "*COPYPARAM")    '(3)
            End If
        Next

        Me.Close()
    End Sub
End Class

Explanation

(1)Get the number of unit in the scene.
(2)Find Macro in the scene.
(3)Run the macro's subroutine [*COPYPARAM].

Source codes

Total source codes can be get from

here.
