Sort by the outline

Overview

Sort by the outline.

Specification of this example

Behavior

The outline of the bin is measured, and the kind is judged.

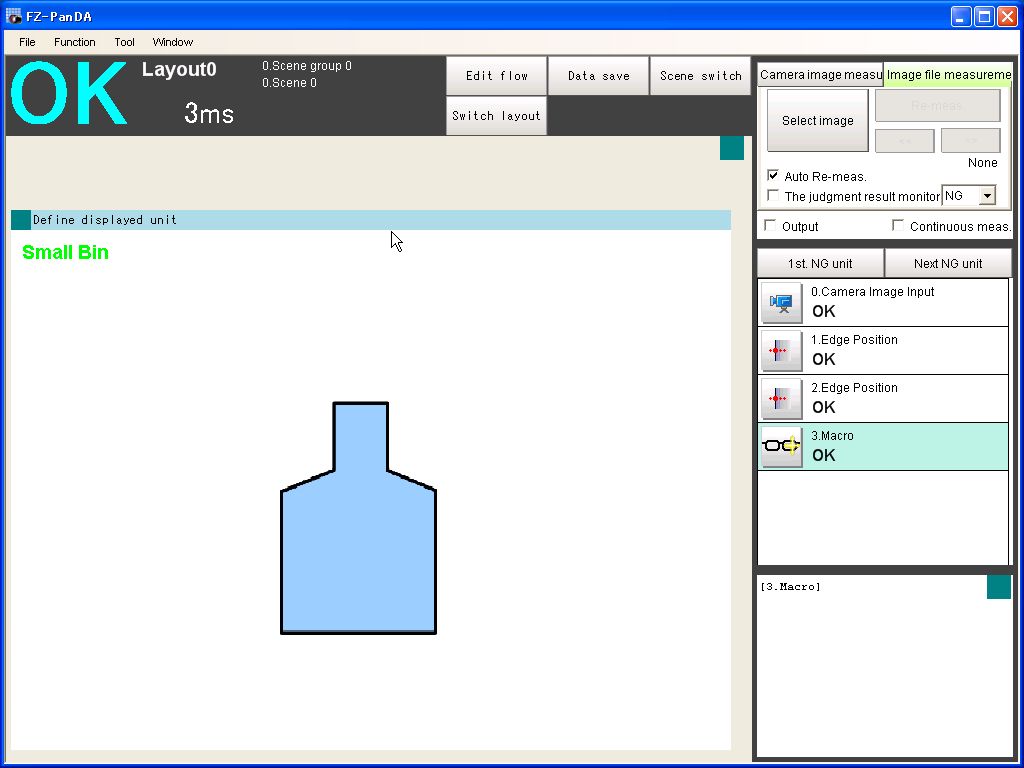

Screenshot

How to try this example
1.Click the link below, then the folder containing zip file automatically opens.

File

2.Right-click and hold on the zip file, and drop it on working window of FJ system. The images and scene data in zip file are loaded on the program automatically.

3.Re-measure the image. Then System automatically displays the kind of the bin in Image Window.

How to implement

Scene data

Unit No.	Processing Item
0.	Camera Image Input
1.	Edge Position
2.	Edge Position
3.	Macro

The Macro Program below segment is to be set in '2.Macro'.

Macro Program

*MCRINIT
    UNITNO1& = 1
    UNITNO2& = 2
Return

*MEASUREPROC
    X1# = UnitData(UNITNO1&, "X")                           '(1)
    X2# = UnitData(UNITNO2&, "X")

    if X1# < 200 then                                       '(2)
        RESULT$ = "Thick Bin"
    elseif X2# < 240 then
        RESULT$ = "Tall Bin"
    else
        RESULT$ = "Small Bin"
    endif
Return

*MEASUREDISPG
    SetTextStyle 20, TA_TOP, JUDGE_OK, 0, FONTSTYLE_BOLD    '(3)
    DrawTextG RESULT$, 10, 10, 0
return

The macro program is in

this link.

Explanation

(1)Get the result of [Edge Position].
(2)Sort the kind of the bottle by the outline.
(3)Display the result in Image Window.
