Save the measurement results per minutes in txt format

Overview

Save the measurement results of [Search] per minutes in txt format.

Specification of this example

Behavior

This Sample saves the measurement results of [Search] per minutes in txt format.

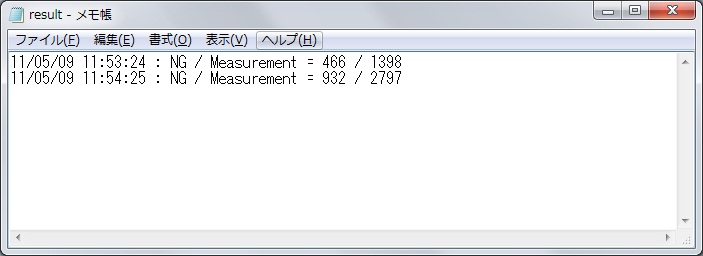

Output Image

How to try this example
1.Click the link below, then the folder containing zip file automatically opens.

File

2.Right-click and hold on the zip file, and drop it on working window of FJ system. The images and scene data in zip file are loaded on the program automatically.

3.Re-measure the image. Then System automatically saves the measurement results of [Search] per minutes in txt format.
The path of the file is "C:\result.txt"

How to implement

Scene data

Unit No.	Processing Item
0.	Camera Image Input
1.	Search
2.	Macro

The Macro Program below segment is to be set in '2.Macro'.

Macro Program

*MCRINIT
    WORKFOLDER$ = "C:\"         '(1)
    WORKFILE$ = "result.csv"
    TIMECOUNT# = 0
    NGCOUNT& = 0
    COUNT& = 0
    UNIT& = 1
    CHECKPOINT& = 60000
Return

*MEASUREPROC
    '(2)
    If TIMECOUNT# = 0 Then
        TIMECOUNT# = StartTimer
    EndIf

    COUNT& = COUNT& + 1         '(3)

    JUDGE& = UnitJudge(UNIT&)         '(4)
    If JUDGE& = JUDGE_NG Then
        NGCOUNT& = NGCOUNT& + 1
    EndIf

    TIME& = Timer(TIMECOUNT#, 0)      '(5)
    If TIME& >= CHECKPOINT& Then

        Open WORKFOLDER$ + WORKFILE$ FOR APPEND As #11         '(6)
        RESULT$ = Date$ + " " + Time$ + " : NG / Measurement = " + Str$(NGCOUNT&) + " / " + Str$(COUNT&)
        Print #11, RESULT$
        Close #11

        TIMECOUNT# = 0
    EndIf

Return

The macro program is in

this link.

Explanation

(1)Initialize parameters(ex.path of the file) when initialize measurement.
(2)Start timer count when its count is 0.
(3)Increment measurement count.
(4)Get judgement result of [Search], and if it is NG then increment NG count.
(5)Get timer count.
(6)If timer count is over 1 minute, save the NG count and measurement count in a file, and reset timer count.
