Show the measurement result with classification

Overview

Classify the measurement result into three level, and display it in ImageWindow.

Specification of this example

Behavior

Get the correlation value from [Search] and make classification as below.

Rank	Correlation
A	80-100
B	50- 80
C	0- 50

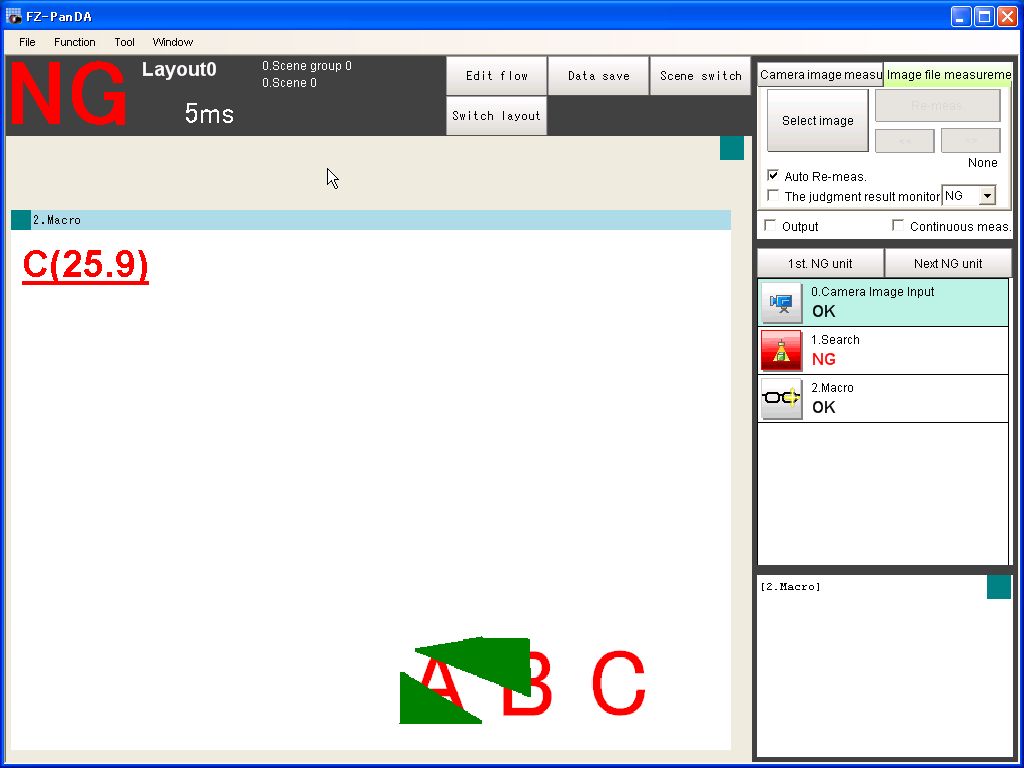

Screenshot

How to try this example
1.Click the link below, then the folder containing zip file automatically opens.

File

2.Right-click and hold on the zip file, and drop it on working window of FJ system. The images and scene data in zip file are loaded on the program automatically.

3.Re-measure the image. Then System automatically displays the result (ABC) in Image Window.

How to implement

Scene data

Unit No.	Processing Item
0.	Camera Image Input
1.	Search
2.	Macro

The Macro Program below segment is to be set in '2.Macro'.

Macro Program

*MEASUREPROC
Return

*MEASUREDISPG
    MYUNIT& = UnitNo
    WRKCR# = UnitData(MYUNIT& - 1,"CR")                                         '(1)

    If WRKCR# < 50 Then                                                         '(2)
        RANK$ = "C"
        COLOR& = JUDGE_NG
    Elseif WRKCR# < 80 Then
        RANK$ = "B"
        COLOR& = JUDGE_NC
    Else
        RANK$ = "A"
        COLOR& = JUDGE_OK
    EndIf

    SetTextStyle 40, TA_TOP, COLOR&, 0, FONTSTYLE_BOLD + FONTSTYLE_UNDERLINE    '(3)
    DrawTextG RANK$ + "(" + Str$(WRKCR#) + ")", 10, 10, 0
Return

The macro program is in

this link.

Explanation

(1)Get judgement result (correlation value) of forward unit via external reference data.
(2)Make classification by threshold value.
(3)Display ranks.
