Count the number of mesurement results OK/NG and display it in Image Window

Overview

Calculate OK, NG and total measurement counts, and percentage of OK and NG products.

And display them in Image Window.

Specification of this example

Behavior
At the end of measurement, calculate the number of OK/NG/Total and the percentage of OK/NG which is the judgement result of specified processing unit ([1.Search]).

And display them in Image Window.

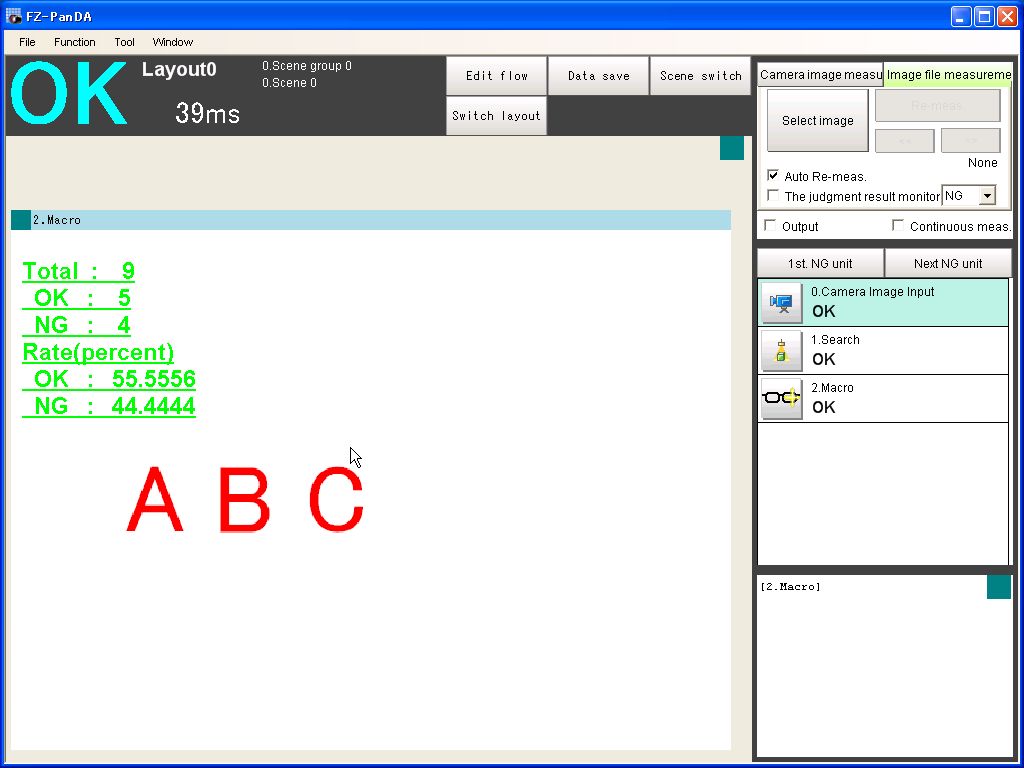

Screenshot

How to try this example
1.Click the link below, then the folder containing zip file automatically opens.

File

2.Right-click and hold on the zip file, and drop it on working window of FJ system. The images and scene data in zip file are loaded on the program automatically.

3.Re-measure the image. Then System automatically displays the number of OK/NG/Total and the percentage of OK/NG which is the judgement result of specified processing unit (this sample is [Search]) in Image Window.

How to implement

Scene data

Unit No.	Processing Item
0.	Camera Image Input
1.	Search
2.	Macro

The Macro Program below segment is to be set in '2.Macro'.

Macro Program

*MCRINIT
    'Initialize                                    '(1)
    FONTSIZE& = 24
    HEIGHT& = 24
    LEFT& = 10
Return

*MEASUREPROC

    MYUNIT& = UnitNo

    RECGJDG& = UnitData(MYUNIT& - 1, "JG")         '(2)

    '(3)
    If RECGJDG& = JUDGE_NG Then
        CNT_NG& = CNT_NG& + 1
    Elseif RECGJDG& = JUDGE_OK Then
        CNT_OK& = CNT_OK& + 1
    EndIf
    CNT_TOT& =  CNT_NG& +  CNT_OK&

    '(4)
    If CNT_TOT& <> 0 Then
        RATE_OK# = CNT_OK& / CNT_TOT& * 100
        RATE_NG# = CNT_NG& / CNT_TOT& * 100
    Else
        RATE_OK# = 0
        RATE_NG# = 0
    EndIf

Return

*MEASUREDISPG
    SetTextStyle 24, TA_TOP, JUDGE_OK, 0, FONTSTYLE_BOLD + FONTSTYLE_UNDERLINE    '(5)
    DrawTextG "Total  :" + Str2$(CNT_TOT&,5,0,0,0), LEFT&, HEIGHT& * 1, 0
    DrawTextG "  OK   :" + Str2$(CNT_OK&,5,0,0,0), LEFT&, HEIGHT& * 2, 0
    DrawTextG "  NG   :" + Str2$(CNT_NG&,5,0,0,0), LEFT&, HEIGHT& * 3, 0
    DrawTextG "Rate(percent)", LEFT&, HEIGHT& * 4, 0
    DrawTextG "  OK   :" + Str2$(RATE_OK#,5,4,0,0), LEFT&, HEIGHT& * 5, 0
    DrawTextG "  NG   :" + Str2$(RATE_NG#,5,4,0,0), LEFT&, HEIGHT& * 6, 0

Return

The macro program is in

this link.

Explanation

(1)Initialize parameters(ex.font size of message) when initialize measurement.
(2)Get measurement results of forward unit via external reference data.
(3)Count the number of OK/NG/Total.
(4)Calculate the percentage of OK/NG.
(5)Display it in Image Window.
